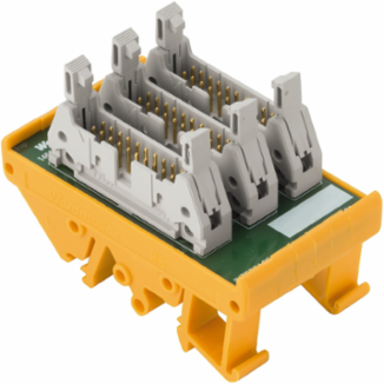

Weidmuller 1461210000 RS F20 X3 IN
- MPN: 1461210000
- PPN: WDM-1461210000
CAD
$70.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RS F20 X3 IN
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE
ROHSConform
Dimensions And Weights
- Length
- 40 mm
- Width
- 70 mm
- Height
- 50 mm
- Net weight
- 57 g
Length (inches)1.575 inch
Width (inches)2.756 inch
Height (inches)1.969 inch
Insulation Coordination (En50178)
- According to
- DIN EN 50178
- Surge voltage category
- II
- Insulation test voltage
- 0.35 kVAC
Rated insulation voltage50 V AC / 70 V DC
Pollution severity level2
Connection Data
- Connection on control side

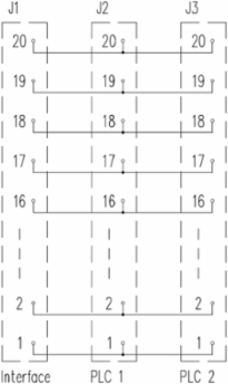

- 3 x plug-in connectors in acc. with IEC60603-13 / DIN41651
- Earthing
- No
Number of poles (control side)20-pole
Classifications
- ETIM 6.0
- EC002584
- eClass 9.0
- 27-33-02-92
- eClass 10.0
- 27-33-02-92
ETIM 7.0EC002584
eClass 9.127-24-22-92
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 50 °C
- Storage temperature, max.
- 60 °C
- Operating temperature
- -25...50 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40...60 °C
Rating Data
- Rated voltage
- 50 V AC / 70 V DC
- Total operating current
- 3 A
Rated current per connection0.5 A
