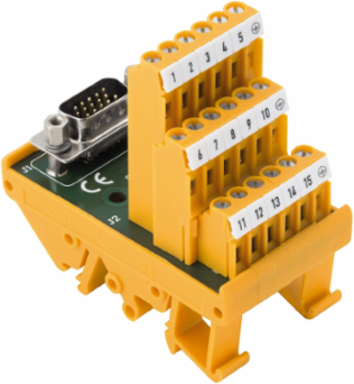

Weidmuller 1428150000 RS SD44F HD UNC4.40 S
- MPN: 1428150000
- PPN: WDM-1428150000
CAD
$124.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

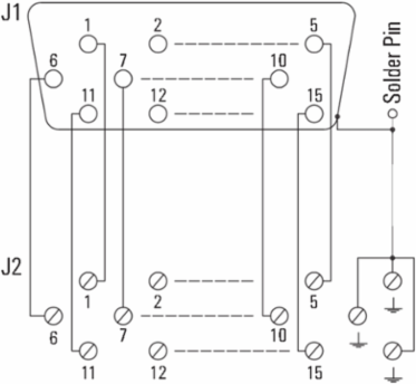

Interface, RSSD, High-density SUB-D plug-in connectors, 44-pole socket, Screw connection
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, EAC
ROHSConform
Dimensions And Weights
- Length
- 95 mm
- Width
- 70 mm
- Height
- 71 mm
- Net weight
- 161.57 g
Length (inches)3.74 inch
Width (inches)2.756 inch
Height (inches)2.795 inch
Insulation Coordination (En50178)
- According to
- DIN EN 50178
- Surge voltage category
- II
- Pulse voltage test (1,2/50μs)
- 1.15 kV
Rated insulation voltage125V AC / 175 V DC
Pollution severity level2
Insulation test voltage0.65 kVAC
Connection Data
- Connection on control side
- High-density SUB-D plug-in connectors
- Connection (field side)
- LP3R 5.08mm
Number of poles (control side)44-pole socket
EarthingNo
Connection Field
- Type of connection
- Screw connection
- Clamping range, max.
- 6 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Min. wire cross-section, AWG
- AWG 26
- Tightening torque, min.
- 0.5 Nm
- Stripping length
- 6 mm
Clamping range, min.0.13 mm²
Solid, min. H05(07) V-U0.5 mm²
Flexible, min. H05(07) V-K0.5 mm²
Flexible with sleeve, max.2.5 mm²
Sleeve with plastic collar, max.2.5 mm²
Max. wire cross-section, AWGAWG 12
Tightening torque, max.0.6 Nm
Classifications
- ETIM 6.0
- EC002780
- eClass 9.0
- 27-14-11-52
- eClass 10.0
- 27-14-11-52
ETIM 7.0EC002780
eClass 9.127-14-11-52
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 50 °C
- Storage temperature, max.
- 60 °C
- Operating temperature
- -25...50 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40...60 °C
Rating Data
- Rated voltage
- 125 V AC / 175 V DC
Rated current per connection1 A
