Weidmuller 1543710000 IE-FC-IP-PWU/1ST/CB
- MPN: 1543710000
- PPN: WDM-1543710000
CAD
$20.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

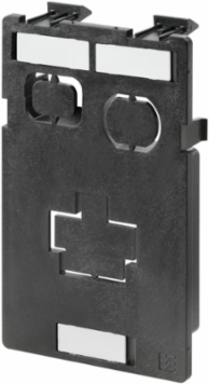

FrontCom, Insert plate, unshielded, 1x Power, US, 1x Data, 1 x fuse
Documentation & Downloads
Specifications
General Data
- Material
- Polycarbonate PC
Product typeInsert plate, unshielded
Approvals
- Approvals
- cURus
- UL File Number Search
- E223801
ROHSConform

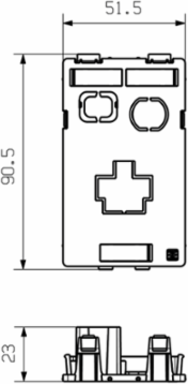

Dimensions And Weights
- Length
- 90.5 mm
- Width
- 51.5 mm
- Height
- 23 mm
- Net weight
- 17.07 g
Length (inches)3.563 inch
Width (inches)2.028 inch
Height (inches)0.906 inch
Standards
- Certificate No. (cURus)
- E223801
Classifications
- ETIM 6.0
- EC000456
- eClass 9.0
- 27-18-28-06
- eClass 10.0
- 27-18-28-06
ETIM 7.0EC000456
eClass 9.127-18-92-90
UNSPSC31-16-23-03
Temperatures
- Operating temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
Operating temperature, min.-40 °C
