Schneider Electric TSXSCMCN050 RS485 Shielded Cable 50 Meter, Twisted Pair, 4.6 kg Weight
Schneider Electric TSXSCMCN050 RS485 Shielded Cable 50 Meter, Twisted Pair, 4.6 kg Weight
- MPN: TSXSCMCN050
- PPN: SCH-TSXSCMCN050
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$375.17/ EA
Description

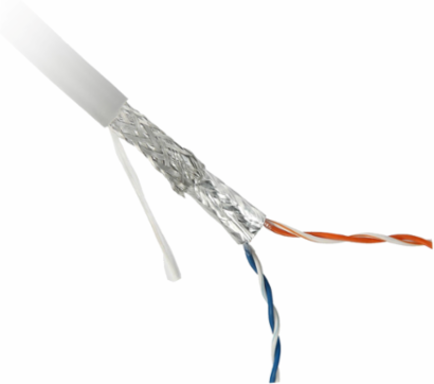

This RS485 shielded cable is used to connect 2 safe communication expansion modules. It is designed to link two safe communication modules, in order to create decentralized cabinets of remote IO. This cable figures 2 pairs of twisted conductors with shielding with flying lead connection. RS485 serial interface shielded cables are used between the Bus expansion communication modules to create up to six decentralized safety-related islands with a maximum of 50 meters between each island. It weighs 4.6kg. It measures 50m. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
Specifications
Complementary
- Type Of Cable
- twisted pair white/blue || twisted pair orange/white
- Awg Gauge
- AWG 24
- Cable Insulation Material
- PE (polyethylene)
- Cable Length
- 50 m
- Nominal Velocity Propagation
- 66 %
- Attenuation
- 1.97 dB
- Net Weight
- 4.6 kg
- [Ue] Rated Operational Voltage
- 300 Vrms
Permissible Current2.1 A
Cable Capacitance0.2096 nF between two conductors) || 0.3772 nF between conductor and shield)
Delay Skew1.54 ns
Electrical Connectionflying leads
Insulation Resistance24 MOhm nominal conductor DC resistance || 2.2 MOhm nominal outer shield DC resistance
Product CompatibilityXPSMCMCO0000S...
Cable Shielding TypeS/FTP
Specifications
- Range Of Product
- Preventa Safety automation
- Accessory / Separate Part Type
- connecting cable
Accessory / Separate Part Categorycabling accessory
Accessory / Separate Part DestinationRS485 safe communication expansion module
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Environment
- Ambient Air Temperature For Operation
- -20-80 °C
