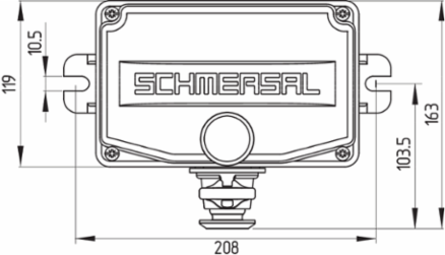

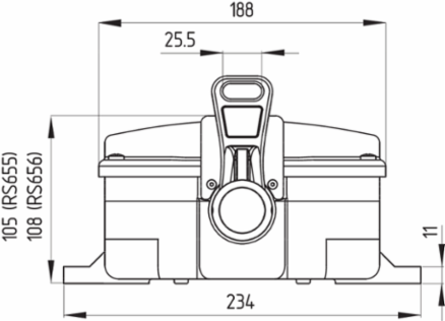

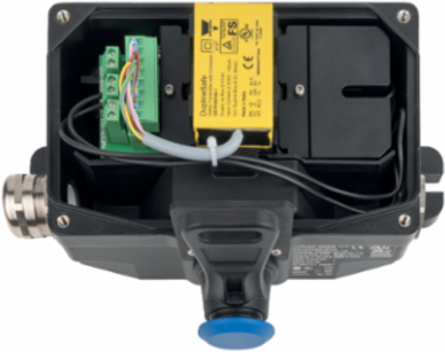

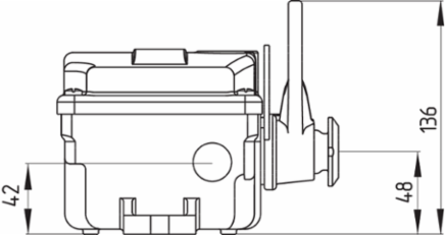

Schmersal 153031619 RS656-Z22-DS Pull-Wire Emergency Stop Switch, IP66/IP67, 100 m Wire Length
- MPN: 153031619
- PPN: SCM-153031619
CAD
$1971.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RS656-Z22-DS Pull-Wire Emergency Stop Switch, IP66/IP67, 100 m Wire Length
Features
- Thermoplastic enclosure
- wire pull and breakage detection
- Protection class IP66, IP67
- Central connection terminal
- Mechanical switching position indication
- two-side operation / wire up to 2 x 100 m
Documentation & Downloads
Specifications
Electrical data - Dupline
- Rated impulse withstand voltage U
- 0.8 kV
- Cable section, maximum
- 2.5 mm², flexible | 4 mm², rigid
Cable section, minimum0.2 mm², rigid | 0.25 mm², flexible
Electrical data
- Thermal test current
- 6 A
- Rated operating voltage
- 24 VDC
- Utilisation category AC-15
- 3 A
- Utilisation category DC-13
- 3 A
- Material of the contacts, electrical
- Silver
Rated operating voltage230 VAC
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC
Switching principleSnap action
Ambient conditions - Insulation values
- Rated insulation voltage U
- 300 V
- Degree of pollution
- 3
Rated impulse withstand voltage U4 kV
Safety classification - Safety outputs
- B
- 100,000 Operations
General data - Features
- Number of auxiliary contacts
- 2
Number of safety contacts2
General data
- Standards
- EN 620 | EN ISO 13850 | EN IEC 60947-5-1 | EN IEC 60947-5-5
- Material of the housing cover
- thermosetting resin
- Gross weight
- 2,830 g
Enclosure materialthermosetting resin
Length of the wire, maximum100 m
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Other data
- Note (applications)
- Pull-wire emergency stop switches
Ambient conditions
- Degree of protection
- IP67 | IP66
- Protection class
- II
Ambient temperature-40 ... +70 °C
Mechanical data - Connection technique
- Termination
- Cage clamp
- Cable section, minimum
- 0.5 mm², flexible
Cable entry2 x M25 x 1.5
Cable section, maximum2.5 mm², flexible
Electrical data - Communication protocols
- Feldbus Protokoll
- DuplineSafe
Mechanical data
- Actuating element
- Roller lever N300
- Actuation direction
- Each time 75° right-hand side and left-hand side rotation
Mechanical life, minimum100,000 Operations
Electrical data - DuplineSafe
- Rated operating voltage
- 8.4 VDC
Current consumption1 mA
Approvals - Standards
- Certificates
- TÜV | cULus | CCC
