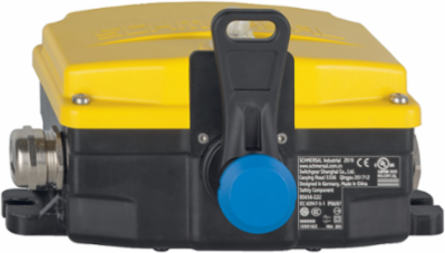

Schmersal 153031617 Pull-Wire Emergency Stop Switch, IP66/IP67, 100 m Wire Length, 2,771 g
- MPN: 153031617
- PPN: SCM-153031617
CAD
$1156.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pull-Wire Emergency Stop Switch, IP66/IP67, 100 m Wire Length, 2,771 g
Features
- Protection class IP66, IP67
- Thermoplastic enclosure
- wire pull and breakage detection
- Central connection terminal
- Mechanical switching position indication
- two-side operation / wire up to 2 x 100 m
Documentation & Downloads
Specifications
Electrical data
| Thermal test current | 6 A |
|---|---|
| Utilisation category AC-15 | 3 A |
| Utilisation category DC-13 | 3 A |
| Material of the contacts, electrical | Silver |
| Utilisation category AC-15 | 230 VAC |
|---|---|
| Utilisation category DC-13 | 24 VDC |
| Switching principle | Snap action |
Ambient conditions - Insulation values
| Rated insulation voltage U | 300 V |
|---|---|
| Degree of pollution | 3 |
| Rated impulse withstand voltage U | 4 kV |
|---|
Safety classification - Safety outputs
| B | 100,000 Operations |
|---|
General data - Features
| Indicator lamp | Yes |
|---|---|
| Number of safety contacts | 2 |
| Number of auxiliary contacts | 2 |
|---|
General data
| Standards | EN 620 | EN ISO 13850 | EN IEC 60947-5-1 | EN IEC 60947-5-5 |
|---|---|
| Material of the housing cover | thermosetting resin |
| Gross weight | 2,771 g |
| Enclosure material | thermosetting resin |
|---|---|
| Length of the wire, maximum | 100 m |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Other data
| Note (applications) | Pull-wire emergency stop switches |
|---|
Ambient conditions
| Degree of protection | IP67 | IP66 |
|---|---|
| Protection class | II |
| Ambient temperature | -40 ... +70 °C |
|---|
Mechanical data - Connection technique
| Termination | Cage clamp |
|---|---|
| Cable section, minimum | 0.5 mm², flexible |
| Cable entry | 2 x M25 x 1.5 |
|---|---|
| Cable section, maximum | 2.5 mm², flexible |
Mechanical data
| Actuating element | Roller lever N300 |
|---|---|
| Actuation direction | Each time 75° right-hand side and left-hand side rotation |
| Mechanical life, minimum | 100,000 Operations |
|---|
Approvals - Standards
| Certificates | TÜV | cULus | CCC |
|---|
