Weidmuller 1444200000 RSV1,6 LB18 GR 3,2 AU
- MPN: 1444200000
- PPN: WDM-1444200000
CAD
$72.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

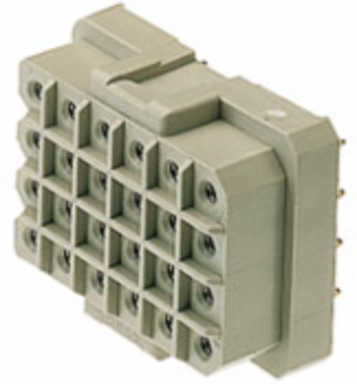

PCB plug-in connector, female header, THT solder connection, 5.00 mm, Number of poles: 18, 180°, Solder pin length (l): 3.2 mm, Gold-plated, Pebble grey, Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group C / UL 1059)
- 300 V
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E92202
Rated current (Use group C / UL 1059)10 A
Approvals
- Approvals
- CSA, EAC, UR
- UL File Number Search
- E92202
ROHSConform
Dimensions And Weights

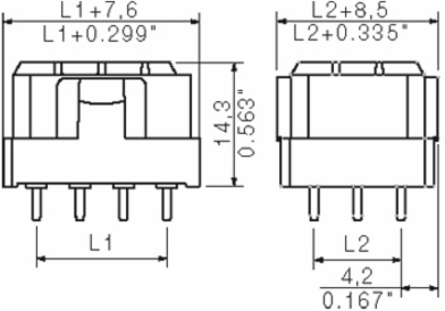

- Height of lowest version
- 14.3 mm
Net weight13.64 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

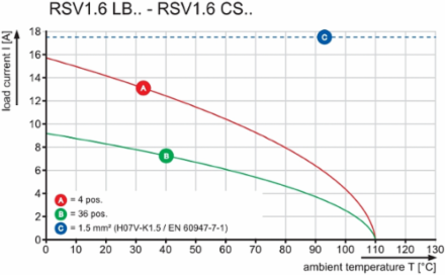

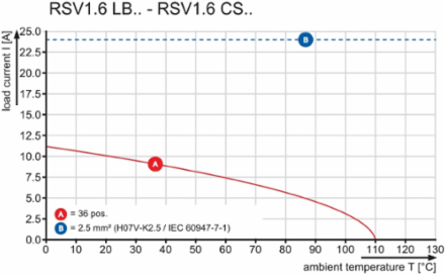

- Rated current, max. number of poles (Tu=20°C)
- 10 A
- Rated current, max. number of poles (Tu=40°C)
- 8.5 A
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 2.5 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
Rated current, min. number of poles (Tu=20°C)14 A
Rated current, min. number of poles (Tu=40°C)12 A
Rated voltage for surge voltage class / pollution degree II/2500 V
Rated voltage for surge voltage class / pollution degree III/3250 V
Rated impulse voltage for surge voltage class/ pollution degree III/22.5 kV
Short-time withstand current resistance3 x 1s with 120 A
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 7032
- GWIT
- 960 °C
- Contact material
- Copper alloy
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
ColourPebble grey
UL 94 flammability ratingV-0
GWFI960 °C
Contact surfaceGold-plated
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC002637
- eClass 9.0
- 27-44-04-02
- eClass 10.0
- 27-44-04-02
ETIM 7.0EC002637
eClass 9.127-44-04-02
UNSPSC30-21-18-10
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Packing
- Packaging
- Box
- VPE width
- 111 mm
VPE length46 mm
VPE height180 mm
System Specifications
- Product family
- OMNIMATE Signal - series RSV
- Mounting onto the PCB
- THT solder connection
- Pitch in inches (P)
- 0.197 inch
- Number of poles
- 18
- Tolerance of solder pin position
- ± 0.20 mm
- Solder eyelet hole diameter (D)
- 1.3 mm
- L1 in mm
- 25 mm
- Number of rows
- 1
Type of connectionBoard connection
Pitch in mm (P)5 mm
Outgoing elbow180°
Solder pin length (l)3.2 mm
Solder pin dimensionsd = 0.97 mm
Solder eyelet hole diameter tolerance (D)+ 0,1 mm
L1 in inches0.984 inch
Pin series quantity3
Notes
- Notes
- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Spacing between rows: see hole layout Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group C / CSA)
- 300 V
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)53975-13
Rated current (Use group C / CSA)13 A
