Weidmuller 1446400000 RSV1,6 LS36 GR 3,2 AU

MPN: 1446400000
PPN: WDM-1446400000

$145.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

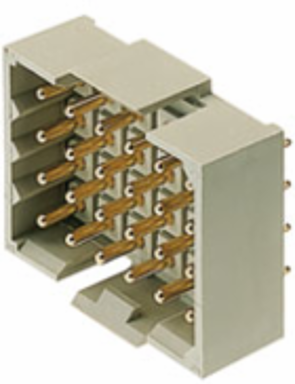

PCB plug-in connector, male header, closed side, THT solder connection, 5.00 mm, Number of poles: 36, 180°, Solder pin length (l): 3.2 mm, Gold-plated, Pebble grey, Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (UR)	UR
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (UR)	E92202

Approvals

Approvals	CSA, EAC, UR
UL File Number Search	E92202

ROHS	Conform

Dimensions And Weights

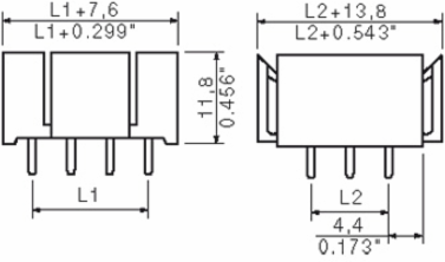

Height	15 mm
Height of lowest version	11.8 mm

Height (inches)	0.591 inch
Net weight	15.1 g

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984

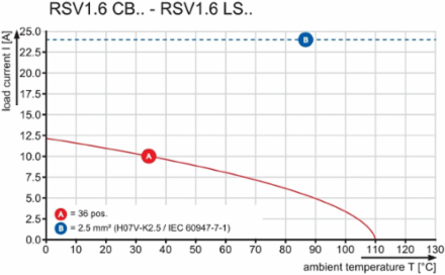

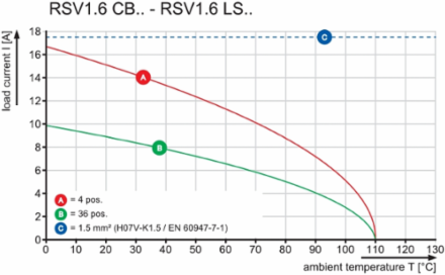

Rated current, max. number of poles (Tu=20°C)	10 A
Rated current, max. number of poles (Tu=40°C)	8.5 A
Rated voltage for surge voltage class / pollution degree III/2	320 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	2.5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV

Rated current, min. number of poles (Tu=20°C)	14 A
Rated current, min. number of poles (Tu=40°C)	12 A
Rated voltage for surge voltage class / pollution degree II/2	500 V
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	2.5 kV
Short-time withstand current resistance	3 x 1s with 120 A

Material Data

Insulating material	Wemid (PA)
Colour chart (similar)	RAL 7032
Comparative Tracking Index (CTI)	≥ 600
GWIT	960 °C
Contact material	Copper alloy
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	100 °C
Temperature range, installation, max.	100 °C

Colour	Pebble grey
Insulating material group	I
UL 94 flammability rating	V-0
GWFI	960 °C
Contact surface	Gold-plated
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Classifications

ETIM 6.0	EC002637
eClass 9.0	27-44-04-02
eClass 10.0	27-44-04-02

ETIM 7.0	EC002637
eClass 9.1	27-44-04-02
UNSPSC	30-21-18-10

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Packing

Packaging	Box
VPE width	70 mm

VPE length	42 mm
VPE height	170 mm

System Specifications

Product family	OMNIMATE Signal - series RSV
Mounting onto the PCB	THT solder connection
Pitch in inches (P)	0.197 inch
Number of poles	36
Solder pin length (l)	3.2 mm
Solder pin dimensions	d = 0.97 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
L1 in inches	1.575 inch
Pin series quantity	4
Touch-safe protection acc. to DIN VDE 0470	IP20 plugged
Plugging force/pole, max.	9 N

Type of connection	Board connection
Pitch in mm (P)	5 mm
Outgoing elbow	180°
Number of solder pins per pole	1
Tolerance of solder pin position	± 0.20 mm
Solder eyelet hole diameter (D)	1.3 mm
L1 in mm	40 mm
Number of rows	1
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch, plugged
Can be coded	Yes
Pulling force/pole, max.	18 N

Notes

Notes	Additional colours on request Rated current related to rated cross-section & min. No. of poles. Spacing between rows: see hole layout Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Rated Data Acc. To Csa

Institute (CSA)	CSA
Rated voltage (Use group C / CSA)	300 V
Reference to approval values	Specifications are maximum values, details - see approval certificate.
