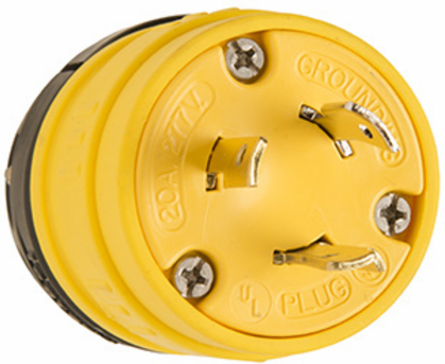

Pass & Seymour 2649 Rubber Dust-Tight Locking Plug, 20 Amp 277 Volt, Yellow, 2.14 Inch Width
- MPN: 2649
- UPC: 785007033809
- PPN: P-S-2649
CAD
$74.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Rubber Dust-Tight Locking Plug, 20 Amp 277 Volt, Yellow, 2.14 Inch Width
Features
- Thermoplastic elastomer (TPV) construction stands up to impacts,oils, chemicals, heat, and weather
- Two Screw cable clamp secures wire and provides superior strain relief
- Quick lead assembly screws aid in a fast installation
- Industrial strength, brass blades and contacts resist heat rise while providing excellent conductivity
- Keyed body and cover for easy assembly and alignment
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 3.05 in
- Special Features
- Rated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
- Country of Origin
- United States
- Type
- Locking
- Voltage
- 277.0 V
- NEMA Rating
- L7-20P
- Number of Wires
- 3.0
- Number of Phases
- 1.0
- Indoor/Outdoor
- Indoor
- Number of Poles
- Double Pole
- NEMA Configuration Code
- L7-20P
- Terminal Accommodation
- #14 AWG - #10 AWG
- Product Line
- Pass & Seymour
Width2.14 in
TypePlug
FlangedNo
Amperage20.0 A
FeaturesLocking
StandardUL Listed
StandardCSA Listed
Warranty Type1-Year
Connector StyleLocking
Application SectorIndustrial
Environmental ConditionsMoisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
ColorYellow
