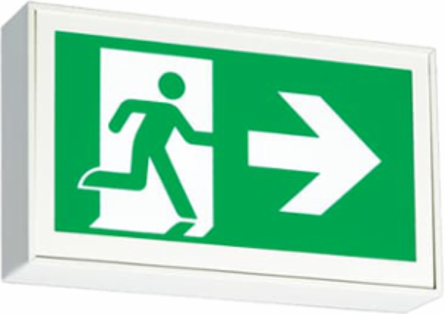

Lumacell LS1WS STEEL PICTOGRAM EXIT SIGN SPWRD
Lumacell LS1WS STEEL PICTOGRAM EXIT SIGN SPWRD
- MPN: LS1WS
- UPC: 624616262524
- PPN: T-B-LS1WS
- UNSPSC: 39111708
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$211.05/ EA
Description
Arrows/Chevron Direction: none, Pictogram Exit Sign, single face, universal mount, Housing Colour: factory white, Battery Type: nickel-cadmium, self-powered, 120 to 347VAC, Battery Run Time (Minimum): 120 minutes, Height of 7.625 inches (0.635 ft, 193.675 mm., 19.368 cm, 0.194 m), Length of 12.125 inches (1.01 ft, 307.975 mm., 30.798 cm, 0.308 m), Width of 2.125 inches (0.177 ft, 53.975 mm., 5.398 cm, 0.054 m)
Specifications
Installation
- Instructions and Manuals
- LS1WS
Dimensions
- Product Net Width
- 2-1/8 in
- Product Net Depth / Length
- 13-3/8 in
- Size
- 8-7/8 inches Height x 13-3/8 inches width
Product Net Height7-3/8 in
Product Net Weight3.84993 lb1.746 kg
Technical
- Standards
- CSA
- Voltage Rating
- 120 to 347 V AC
- Product Type
- Pictogram Exit Signs
- Legend
- On
- Color of Display Background
- Green
- Battery Weight
- 0.15 lb
ApplicationCommercial
Mounting TypeUniversal
MaterialFaceplate: Polycarbonate, Frame: Steel
Housing ColorFactory White
Battery Chemical CompositionNickel-Cadmium
Number of Batteries1
Classifications
- WEEE Category
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC)
- 3939 >> Emergency exit illuminated sign
eClassV11.0 : 27110305
Environmental
- RoHS Status
- No declaration needed
REACH DeclarationNo declaration needed
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 4 lb
Package Level 1 Unitsbox 1 piece
