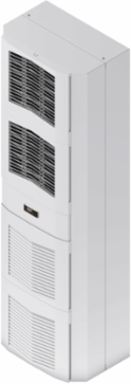

Nvent Hoffman S162046G050 SpectraCool Slim Fit Indoor AC S16, 2000W 460V No RAC, Light Gray, Steel
Nvent Hoffman S162046G050 SpectraCool Slim Fit Indoor AC S16, 2000W 460V No RAC, Light Gray, Steel
- MPN: S162046G050
- UPC: 783510281823
- PPN: HOF-S162046G050
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
SpectraCool SlimFit ACs designed with 3 space-saving mounting options to maximize footprint. This SpectraCool Slim Fit Indoor AC S16, S162046G050 item is rated for 2000W 460V No RAC with a material of Steel colored Light Gray.
Features
- Slim Fit Design with three mounting options; fully recessed, partial recessed and surface mount
- Aesthetic design plastic cover to optimize air flow
- R134a refrigerant
- Voltage: 230 V (50/60 Hz), 115 V (50/60 Hz) and 400/460 V 3-phase (50/60 Hz)
- Operating temperature range from 50 F / 10 C to 131 F / 55 C
- Easy filter replacement for extremely dusty environments
- Dust resistant coils for filterless operation
- Active condensate management to prevent dripping water
- Energy efficient rotary compressor
- Terminal block power input
- Standard cutout dimension for easy exchange
- Every unit functionally tested before shipping
- Standard Air Conditioners are compatible with an enclosure door switch
- Remote Access Control Units support up to 2 temperature sensors and 10 alarms. They support multiple communication protocols: SNMP, Modbus TCP, Ethernet/IP, and Profinet.
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 399
- Nominal Voltage
- 460
- Number of Phases
- 3
- Nominal Capacity Watts
- 2,000
- Max Current
- 9
- Material
- Mild Steel
- Color Code
- RAL 7035
- Product Family
- SpectraCool Slim Fit
- Weight
- 160
- Voltage Rating
- 400 - 460 VAC
Height (H)1,580
Depth (D)295
Remote Access ControlNo
Nominal Capacity Btu/h6,800
Operating Temperature10
Protection RatingNEMA Type 12
FinishPowder Coated
Thickness (T)1.21
NEMA Rating12 Indoor, dust-resistant
Sub BrandSpectraCool
ColorLt Gray
