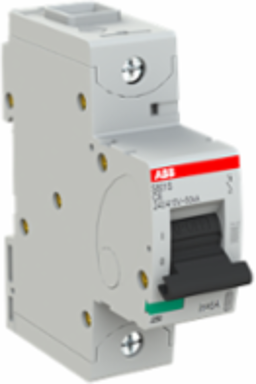

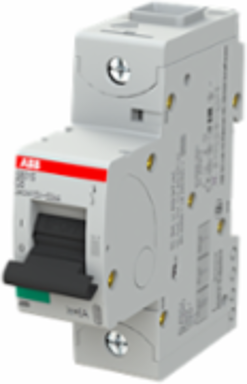

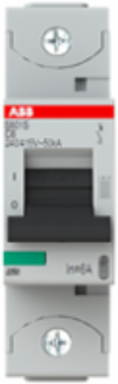

ABB S801S-C6 S801S-C6 High Performance MCB
- MPN: S801S-C6
- UPC: 888614227279
- PPN: ABB-S801S-C6
CAD
$196.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The S801S-C6 is a 1-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 6 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S801S-C6 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S801S-C6 more comfortable. Due to the fast arc extinction of S801S-C6 your application will be secured.
Specifications
Installation
- Instructions and Manuals
- 2CCC413016M0008
Dimensions
- Width in Number of Modular Spacings
- 1.5
- Product Net Height
- 95 mm
- Product Net Weight
- 245 g
- Built-In Depth (t2)
- 82.5 mm
Product Net Width27 mm
Product Net Depth / Length82.5 mm
Size1_module
Dimension Diagram2CCC413003C0201
Technical
- Standards
- IEC/EN 60947-2, IEC/EN 60898-1, UL 1077
- Rated Voltage (Ur)
- acc. to IEC 60947-2 400 V ACacc. to IEC 60947-2 125 V DCacc. to IEC 60898-1 230/400 V AC
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 690 V
- Input Voltage Type
- AC/DC
- Rated Operational Current (Ie)
- 6 A
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (230 V) 50 kA(400 V) 6 kA
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (240 / 415 V AC) 40 kA(254 / 440 V AC) 22.5 kA(400 / 690 V AC) 4 kA(125 V DC) 30 kA
- Rated Frequency (f)
- 50/60 Hz
- Contact Position Indication
- ON / OFF / TRIP
- Electrical Endurance
- 10000 cycle
- Number of Poles
- 1
- Overvoltage Category
- IV
- Release Type
- C
- Housing Material
- Insulation group I, RAL 7035
- Mounting Position
- Any
- Accessories Available
- Yes
- Connecting Capacity
- Flexible 0 … 50 mm²Rigid 0 … 70 mm²
Tripping CharacteristicC
Rated Operational Voltageacc. to IEC 60898-1 230 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Current (In)6 A
Rated Short-Circuit Capacity(230 V) 25 kA(400 V) 25 kA
Rated Conditional Short-Circuit Current (Inc)(230 V) 50 kA(400 V) 50 kA
Frequency (f)50...60 Hz
Power Loss1.8 Wat Rated Operating Conditions per Pole 1.8 W
Energy Limiting Class3
Mechanical Endurance10000 cycle
Number of Protected Poles1
Tightening Torque3.5 N·m31 in·lb
Actuator MarkingI / O
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Recommended Screw DriverPozidriv 2
RemarksConnection from top and bottomConnecting with CU onlyIP40 in enclosure with coverCage terminal with captive screw
Terminal TypeScrew Terminals
Classifications
- ETIM 9
- EC000042 - Miniature circuit breaker (MCB)
- WEEE B2C / B2B
- Business To Business
- eClass
- V11.0 : 27141901
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
CN885362020
Object Classification CodeF
Environmental
- Ambient Temperature
- -25...60 °C
- Reference Ambient Air Temperature
- acc. to IEC60947-2 30 °Cacc. to EN60898-1 30 °C
- Pollution Degree
- 3
- RoHS Status
- Following EU Directive 2011/65/EU
- Environmental Information
- 2CCY413207D0203
Ambient Air TemperatureOperation -25 … 60 °C
Degree of ProtectionIP20
Resistance to Vibrations acc. to IEC 60068-2-62 - 13.2 Hz / 1mm13.2 - 100Hz / 0.7gwith load 100% x Ie
RoHS Information9AKK107680A3903 2CCC005083D0202
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
Technical UL/CSA
- Interrupting Rating acc. to UL1077
- (240 V AC) 30 kA(277 V AC) 14 kA(347 V AC) 6 kA
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 270 g
Package Level 1 Unitsbox 1 piece
E-Number (Finland)3212309
