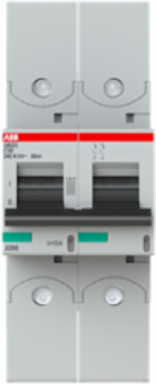

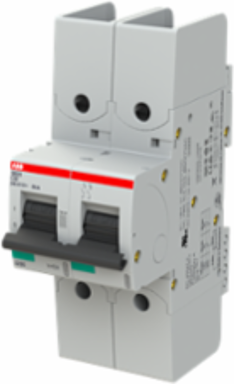

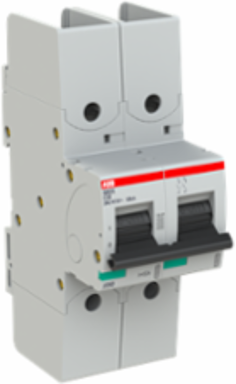

ABB S802S-C50-R S802S-C50-R High Performance MCB
- MPN: S802S-C50-R
- UPC: 888614181380
- PPN: ABB-S802S-C50-R
CAD
$449.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The S802S-C50-R is a 2-pole High Performance Circuit breaker with C-characteristic, with ring tongue terminal and a rated current of 50 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802S-C50-R complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802S-C50-R more comfortable. Due to the fast arc extinction of S802S-C50-R your application will be secured.
Specifications
Installation
- Instructions and Manuals
- 2CCC413016M0008
Dimensions
- Width in Number of Modular Spacings
- 3
- Product Net Height
- 142 mm
- Product Net Weight
- 490 g
- Built-In Depth (t2)
- 82.5 mm
Product Net Width54 mm
Product Net Depth / Length82.5 mm
Size2 modules
Dimension Diagram2CCC413003C0201
Technical
- Standards
- IEC/EN 60947-2, IEC/EN 60898-1, UL 1077
- Rated Voltage (Ur)
- acc. to IEC 60947-2 690 V ACacc. to IEC 60947-2 250 V DCacc. to IEC 60898-1 400 V AC
- Operational Voltage
- Maximum 230/400 V ACMinimum 12 V AC
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Current (In)
- 50 A
- Rated Short-Circuit Capacity
- (230 V) 25 kA(400 V) 25 kA
- Rated Conditional Short-Circuit Current (Inc)
- (230 V) 50 kA(400 V) 50 kA
- Frequency (f)
- 50 ... 60 Hz
- Power Loss
- 8.6 Wat Rated Operating Conditions per Pole 4.3 W
- Energy Limiting Class
- 3
- Mechanical Endurance
- 4000 cycle
- Number of Protected Poles
- 2
- Tightening Torque
- 3.5 N·m31 in·lb
- Actuator Marking
- I / O
- Options Provided
- Ringlug terminal
- Mounting Position
- Any
- Accessories Available
- Yes
- Connecting Capacity
- Flexible 0 … 50 mm²Rigid 0 … 70 mm²
Tripping CharacteristicC
Rated Operational Voltageacc. to IEC 60898-1 400 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V
Input Voltage TypeAC/DC
Rated Operational Current (Ie)50 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V) 50 kA(400 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(240 / 415 V AC) 40 kA(254 / 440 V AC) 22.5 kA(400 / 690 V AC) 4 kA(125 V DC) 30 kA
Rated Frequency (f)50/60 Hz
Contact Position IndicationON / OFF / TRIP
Electrical Endurance6000 cycle
Number of Poles2
Overvoltage CategoryIV
Release TypeC
Housing MaterialInsulation group I, RAL 7035
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Recommended Screw DriverPozidriv 2
RemarksConnection from top and bottomConnecting with CU onlyIP40 in enclosure with coverCage terminal with captive screw
Terminal TypeScrew Terminals
Classifications
- ETIM 9
- EC000042 - Miniature circuit breaker (MCB)
- WEEE B2C / B2B
- Business To Business
- eClass
- V11.0 : 27141901
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
CN885362020
Object Classification CodeF
Environmental
- Ambient Temperature
- -25...60 °C
- Reference Ambient Air Temperature
- acc. to IEC60947-2 30 °Cacc. to EN60898-1 30 °C
- Pollution Degree
- 3
- RoHS Status
- Following EU Directive 2011/65/EU
- Environmental Information
- 2CCY413207D0203
Ambient Air TemperatureOperation -25 … 60 °C
Degree of ProtectionIP20
Resistance to Vibrations acc. to IEC 60068-2-62 - 13.2 Hz / 1mm13.2 - 100Hz / 0.7gwith load 100% x Ie
RoHS Information9AKK107680A3903 2CCC005083D0202
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
Technical UL/CSA
- Interrupting Rating acc. to UL1077
- (480Y / 277 V AC) 14 kA(600Y / 347 V AC) 6 kA
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 530 g
Package Level 1 Unitsbox 1 piece
