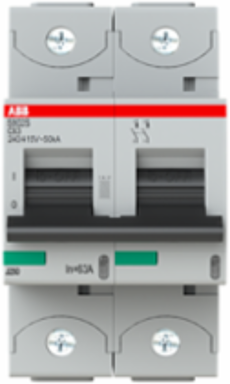

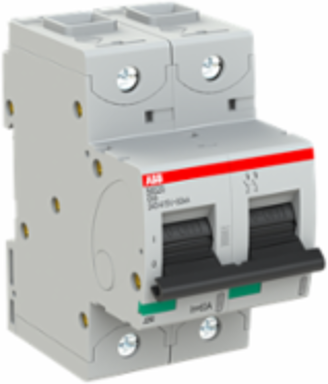

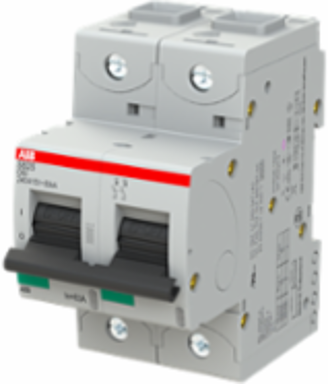

ABB S802S-C63 S802S-C63 High Performance MCB
- MPN: S802S-C63
- UPC: 804325458900
- PPN: ABB-S802S-C63
CAD
$393.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The S802S-C63 is a 2-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 63 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802S-C63 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802S-C63 more comfortable. Due to the fast arc extinction of S802S-C63 your application will be secured.
Specifications
Installation
- Instructions and Manuals
- 2CCC413016M0008
Dimensions
- Width in Number of Modular Spacings
- 3
- Product Net Height
- 95 mm
- Product Net Weight
- 490 g
- Built-In Depth (t2)
- 82.5 mm
Product Net Width54 mm
Product Net Depth / Length82.5 mm
Size2 modules
Dimension Diagram2CCC413003C0201
Technical
- Standards
- IEC/EN 60947-2, IEC/EN 60898-1, UL 1077
- Type of Residual Current
- standard version
- Rated Operational Voltage
- acc. to IEC 60898-1 400 V
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 690 V
- Input Voltage Type
- AC/DC
- Rated Operational Current (Ie)
- 63 A
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (230 V) 50 kA(400 V) 6 kA
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (240 / 415 V AC) 40 kA(254 / 440 V AC) 22.5 kA(400 / 690 V AC) 4 kA(125 V DC) 30 kA
- Rated Frequency (f)
- 50/60 Hz
- Contact Position Indication
- ON / OFF / TRIP
- Electrical Endurance
- 6000 cycle
- Number of Poles
- 2
- Overvoltage Category
- IV
- Release Type
- C
- Housing Material
- Insulation group I, RAL 7035
- Mounting Position
- Any
- Accessories Available
- Yes
- Connecting Capacity
- Flexible 0 … 50 mm²Rigid 0 … 70 mm²
Tripping CharacteristicC
Rated Voltage (Ur)acc. to IEC 60947-2 690 V ACacc. to IEC 60947-2 250 V DCacc. to IEC 60898-1 400 V AC
Operational VoltageMaximum 230/400 V ACMinimum 12 V AC
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Current (In)63 A
Rated Short-Circuit Capacity(230 V) 25 kA(400 V) 25 kA
Rated Conditional Short-Circuit Current (Inc)(230 V) 50 kA(400 V) 50 kA
Frequency (f)50 ... 60 Hz
Power Loss12.8 Wat Rated Operating Conditions per Pole 6.4 W
Energy Limiting Class3
Mechanical Endurance4000 cycle
Number of Protected Poles2
Tightening Torque3.5 N·m31 in·lb
Actuator MarkingI / O
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Recommended Screw DriverPozidriv 2
RemarksConnection from top and bottomConnecting with CU onlyIP40 in enclosure with coverCage terminal with captive screw
Terminal TypeScrew Terminals
Classifications
- ETIM 9
- EC000042 - Miniature circuit breaker (MCB)
- WEEE B2C / B2B
- Business To Business
- eClass
- V11.0 : 27141901
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
CN885362020
Object Classification CodeF
Environmental
- Ambient Temperature
- -25...60 °C
- Reference Ambient Air Temperature
- acc. to IEC60947-2 30 °Cacc. to EN60898-1 30 °C
- Pollution Degree
- 3
- RoHS Status
- Following EU Directive 2011/65/EU
- Environmental Information
- 2CCY413207D0203
Ambient Air TemperatureOperation -25 … 60 °C
Degree of ProtectionIP20
Resistance to Vibrations acc. to IEC 60068-2-62 - 13.2 Hz / 1mm13.2 - 100Hz / 0.7gwith load 100% x Ie
RoHS Information9AKK107680A3903 2CCC005083D0202
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
Technical UL/CSA
- Interrupting Rating acc. to UL1077
- (480Y / 277 V AC) 14 kA(600Y / 347 V AC) 6 kA
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 510 g
- E-Number (Switzerland)
- 807155315
Package Level 1 Unitsbox 1 piece
E-Number (Finland)3212138
