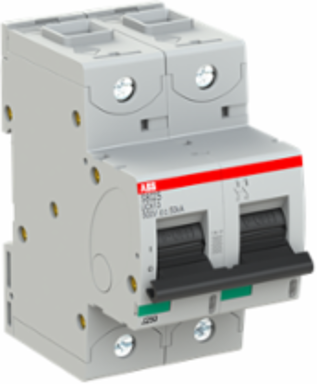

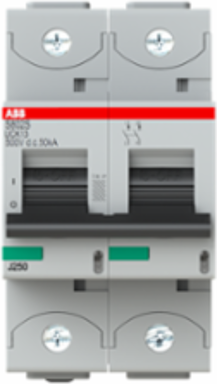

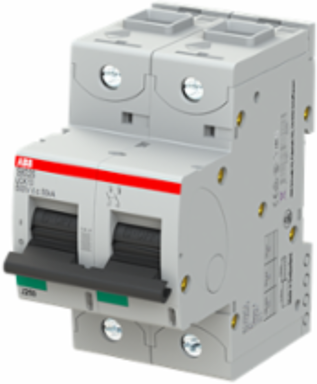

ABB S802S-UCK13 S802S-UCK13 High Performance MCB
- MPN: S802S-UCK13
- UPC: 804325466783
- PPN: ABB-S802S-UCK13
CAD
$524.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
S802S-UCK13 High Performance Miniature Circuit Breaker 2 Poles K Characteristic 13A 50kA 250VDC
Specifications
Installation
- Instructions and Manuals
- 2CCC413016M0008
Dimensions
- Width in Number of Modular Spacings
- 3
- Product Net Height
- 95 mm
- Product Net Weight
- 490 g
- Built-In Depth (t2)
- 82.5 mm
Product Net Width54 mm
Product Net Depth / Length82.5 mm
Size2 modules
Dimension Diagram2CCC413003C0201
Technical
- Standards
- IEC/EN 60947-2
- Type of Residual Current
- standard version
- Rated Operational Voltage
- acc. to IEC 60898-1 400 V
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Current (In)
- 13 A
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (500 V DC) 50 kA(230 V) 50 kA(400 V) 50 kA
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (500 V DC) 50 kA
- Rated Frequency (f)
- 0 Hz
- Contact Position Indication
- ON / OFF / TRIP
- Number of Poles
- 2
- Overvoltage Category
- III
- Actuator Marking
- I / O
- Connecting Capacity
- Flexible 0 … 50 mm²Rigid 0 … 70 mm²
Tripping CharacteristicUC-K
Rated Voltage (Ur)acc. to IEC 60947-2 500 V DC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1500 V
Input Voltage TypeDC
Rated Operational Current (Ie)13 A
Rated Conditional Short-Circuit Current (Inc)(230 V) 50 kA(400 V) 50 kA
Frequency (f)50...60 Hz
Power Loss4 Wat Rated Operating Conditions per Pole 2 W
Energy Limiting Class3
Number of Protected Poles2
Release TypeK
Accessories AvailableYes
Terminal TypeScrew Terminals
Classifications
- ETIM 9
- EC000042 - Miniature circuit breaker (MCB)
- WEEE B2C / B2B
- Business To Business
- eClass
- V11.0 : 27141901
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
CN885362020
Object Classification CodeF
Environmental
- Ambient Temperature
- -25...60 °C
- Degree of Protection
- IP20
- RoHS Status
- Following EU Directive 2011/65/EU
- Environmental Information
- 2CCY413207D0203
Ambient Air TemperatureOperation -25 … 60 °C
Pollution Degree2
RoHS Information9AKK107680A3903 2CCC005084D0202
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 510 g
Package Level 1 Unitsbox 1 piece
