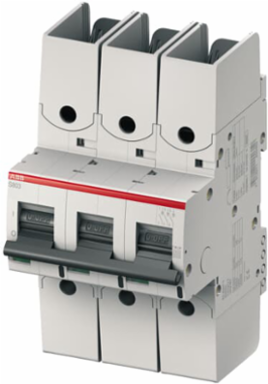

ABB S803HV-K10 S803HV-K10 High Performance MCB
- MPN: S803HV-K10
- UPC: 888614482685
- PPN: ABB-S803HV-K10
CAD
$698.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The S803HV-K10 is a 3-pole High Performance Circuit breaker with K-characteristic, with cage terminal, long separating plates and a rated current of 10 A. It is a current limiting device with a maximum breaking capacity of 4kA at 580/1000V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803HV-K10 complies with IEC/EN 60947-2 and allows the use for industrial applications. It can be used worldwide. The extensive range of accessory makes the use of S803HV-K10 more comfortable. Due to the fast arc extinction of S803HV-K10 your application will be secured.
Specifications
Installation
- Instructions and Manuals
- 2CCC413016M0008
Dimensions
- Width in Number of Modular Spacings
- 4.5
- Product Net Height
- 142 mm
- Product Net Weight
- 720 g
Product Net Width81 mm
Product Net Depth / Length82.5 mm
Built-In Depth (t2)82.5 mm
Technical
- Standards
- IEC/EN 60947-2, UL 1077
- Rated Voltage (Ur)
- acc. to IEC 60947-2 580/1000 V ACacc. to IEC 60947-2 1000 V AC
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 1000 V
- Input Voltage Type
- AC
- Rated Operational Current (Ie)
- 10 A
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (230 V) 4 kA(400 V) 4 kA
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (580 / 1000 V AC) 2.5 kA
- Rated Frequency (f)
- 50/60 Hz
- Contact Position Indication
- ON / OFF / TRIP
- Number of Poles
- 3
- Overvoltage Category
- III
- Release Type
- K
- Housing Material
- Insulation group I, RAL 7035
- Mounting Position
- Any
- Accessories Available
- Yes
- Connecting Capacity
- Flexible 0 … 50 mm²Rigid 0 … 70 mm²
Tripping CharacteristicK
Rated Operational Voltageacc. to IEC 60898-1 400 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Current (In)10 A
Rated Short-Circuit Capacity(400 V) 2.5 kA(230 V) 2.5 kA
Rated Conditional Short-Circuit Current (Inc)(230 V) 4 kA(400 V) 4 kA
Frequency (f)60...60 Hz
Power Loss4.5 Wat Rated Operating Conditions per Pole 1.5 W
Energy Limiting Class3
Number of Protected Poles3
Tightening Torque3.5 N·m
Actuator MarkingI / O
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Recommended Screw DriverPozidriv 2
RemarksConnection from top and bottomConnecting with CU onlyIP40 in enclosure with coverCage terminal with captive screw
Terminal TypeScrew Terminals
Classifications
- ETIM 9
- EC000042 - Miniature circuit breaker (MCB)
- WEEE B2C / B2B
- Business To Business
- eClass
- V11.0 : 27141901
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
CN885362020
Object Classification CodeF
Environmental
- Ambient Temperature
- -25...60 °C
- Degree of Protection
- IP20
- Resistance to Vibrations acc. to IEC 60068-2-6
- 2 - 13.2 Hz / 1mm13.2 - 100Hz / 0.7gwith load 100% x Ie
- RoHS Status
- Following EU Directive 2011/65/EU
- Environmental Information
- 2CCY413207D0203
Ambient Air TemperatureOperation -25 … 60 °C
Pollution Degree2
Resistance to Shock acc. to IEC 60068-2-275 g30 ms
RoHS Information9AKK107680A3903 2CCC005084D0202
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
Technical UL/CSA
- Interrupting Rating acc. to UL1077
- (600 V AC) 15 kA
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 850 g
Package Level 1 Unitsbox 1 piece
E-Number (Sweden)2100058
