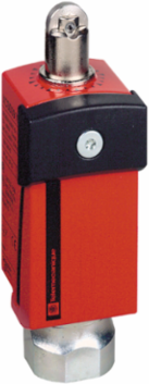

Telemecanique Sensors XCSD3902P20 Safety limit switch, Telemecanique Safety switches XCS, metal, roller plunger, 2NC+1 NO, 1entry tapped M20 x 1.5

MPN: XCSD3902P20
PPN: TES-XCSD3902P20
UNSPSC: 39122213

$99.78

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This XCSD Compact Safety Limit Switch has a steel roller plunger, a Zamak body and head and a M20 cable gland entry. It has 1 normally open and 2 normally closed snap action contacts. Its B10D reliability data is 50 000 000. It has IK06 impact resistance and IP66 / IP67 degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Documentation & Downloads

Specifications

Key Specifications

Contacts Type And Composition	1 NC + 1 NC + 1 NO
Cable Entry	1 entry tapped M20 x 1.5
Protection Technology	plastic protective cover, secured by 5-lobe socket head safety screw
Design	compact
Head Type	plunger head
Type Of Operator	steel roller plunger

Range Of Product	Telemecanique Safety switches XCS
Product Or Component Type	safety limit switch
Component Name	XCSD
Material	metal
Contact Operation	snap action

Complementary

Height	100-100 mm
Clamping Connection Capacity	1 x 0.34...2 x 0.75 mm²
[Ithe] Conventional Enclosed Thermal Current	6 A
Net Weight	0.255 kg
Switch Actuation	by 30° cam
Positive Opening Minimum Force	36 N
Mechanical Durability	10000000 cycles
Body Material	zamak
Enclosure Material	plastic
Contact Code Designation	B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A \|\| R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A
Depth	35 mm
Maximum Resistance Across Terminals	25 MOhm IEC 60255-7 category 3

Short-Circuit Protection	6 A cartridge fuse gG (gl)
Repeat Accuracy	0.1 mm on tripping points, 1 million operating cycles for head with end plunger
Head Material	zamak
[Uimp] Rated Impulse Withstand Voltage	4 kV EN/IEC 60947-1 \|\| 4 kV IEC 60664
[Ui] Rated Insulation Voltage	300 VUL 508 \|\| 400 V 3)EN/IEC 60947-1 \|\| 300 VCSA C22.2 No 14
Positive Opening	with NC contact
Maximum Actuation Speed	0.5 m/s
Electrical Connection	terminal
Minimum Force For Tripping	12 N
Width	34 mm
Number Of Poles	3

Environment

Product Certifications	UL \|\| CSA
Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	50 gn 11 ms IEC 60068-2-27
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 IEC 60529
Electrical Shock Protection Class	class I NF C 20-030 \|\| class I EN/IEC 61140
Protective Treatment	TC

Ik Degree Of Protection	IK06 EN 50102
Standards	EN 1088/ISO 14119 \|\| EN/IEC 60204-1 \|\| EN/IEC 60947-5-1 \|\| UL 508 \|\| CSA C22.2 No 14
Vibration Resistance	25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Safety Reliability Data	B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Safety Level	can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110614EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
