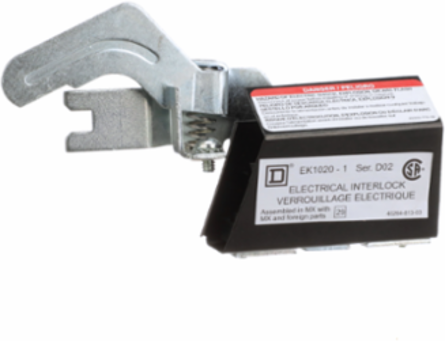

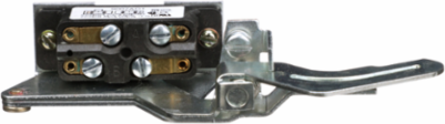

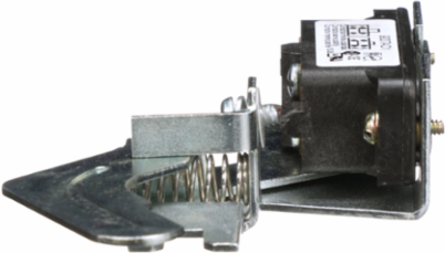

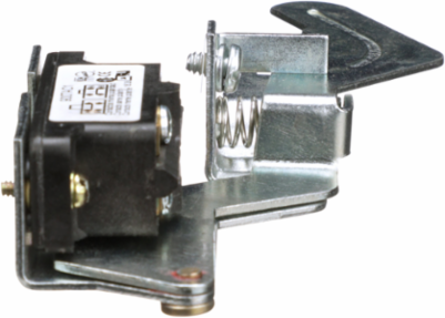

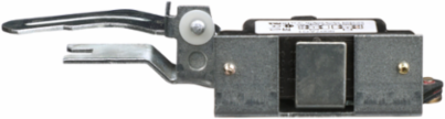

Square D EK10201 Electrical Interlock Switch Kit, SPDT, UL Listed
- MPN: EK10201
- UPC: 785901011057
- PPN: SCH-EK10201
- UNSPSC: 39122205
CAD
$265.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Square D™ by Schneider Electric heavy duty acccessories include the electrical interlock switch kit. This electrical interlock switch is a single pole, double throw, one normally open and one normally closed contact. It is for use with heavy duty safety switches.
Features
- Square D™ double throw safety switches are designed to survive in the most grueling conditions
- Secures equipement from having both main breakers on simultaneously
- Product characteristics conformity is certified by the Underwriters Laboratories (UL), NEMA KS1, and ANSI
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1904 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Destination | safety switch |
| Returnability | Yes |
| Switch Function | SPDT |
| Certificate Agency | UL Listed |
| Customs Code | 8536509065 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2026-08-25 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 4 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | interlock |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | interlock |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
