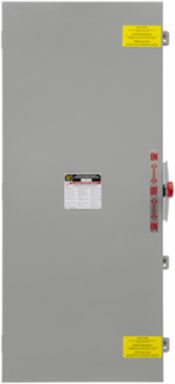

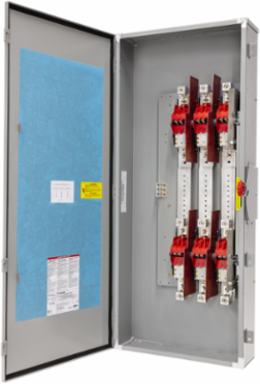

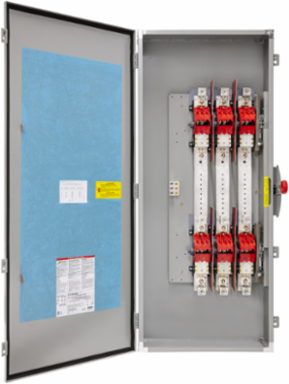

Square D DTU365AWK Double Throw Safety Switch 400A 600VAC 250VDC 3 Pole NEMA 12
- MPN: DTU365AWK
- PPN: SCH-DTU365AWK
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The DTU365AWK Double Throw Safety Switch from Schneider Electric is engineered for dependable power distribution in industrial environments. With a robust capacity of 400A, it efficiently manages voltages of up to 600VAC and 250VDC, making it suitable for various applications requiring dual power sources. This three-pole switch is designed to ensure safety and reliability, featuring a NEMA 12 enclosure that protects against dust and moisture. Its thoughtful design emphasizes seamless operation, making it an essential component for any system prioritizing safety and functionality.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States

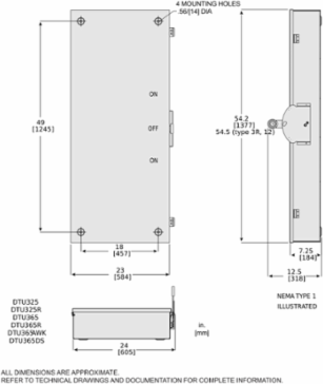

Depth7.25 in
Complementary Attributes
- Line Rated Current
- 400 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- H or K, R, J or T
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 177 kg CO2 eq., 177.24779060365515
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 373 kg CO2 eq., 372.60038896678407
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- none
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Software Version
- v6.2.4
- Tightening Torque
- 550-550 lbf.in 53.49-304 mm² (1/0 AWG...750 kcmil)62.14-62.14 lbf.in 53.49-152 mm² (2 x 1/0 AWG...2 x 300 kcmil)
- Pep Code
- ENVPEP2503029EN
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 54.50 in
- Certificate Agency
- UL Listed
- Short-circuit Current
- 10 kA H or K100 kA R, J or T
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509045
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]184.79426439677087, 185 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.17647909899402248, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]547 kg CO2 eq., 547.0206826529308
Local Publishable Date2025-11-13
Stocking FlagY
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1940
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge1/0 AWG...750 kcmil aluminium/copper
Disconnector Device Typenon-fusible disconnect switch
Number Of Poles3
Product Or Component TypeDouble Throw Safety Switch
Series Namegeneral duty
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 282 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %90
Width Nominal24 in
[Ue] Rated Operational Voltage600 V AC250 V DC
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)72.575 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503029EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2503029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Halogene PerformanceHalogen free plastic parts product
Toxic Heavy Metal FreeYes
Carbon Footprint1281.8396057191349
Eu Rohs DirectiveCompliant
Nema Degree Of ProtectionNEMA 12
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- Double Throw Safety Switch
