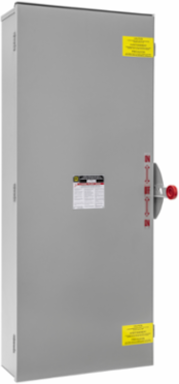

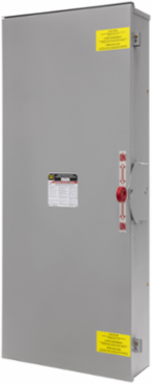

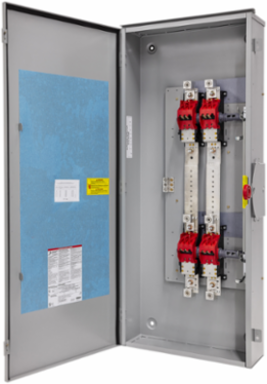

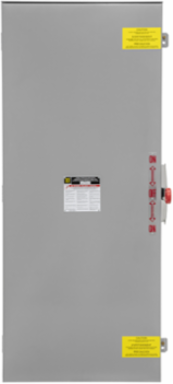

Square D DTU365R Double Throw Safety Switch, 400A, 600VAC, NEMA 3R, 3 Pole
- MPN: DTU365R
- UPC: 785901332374
- PPN: SCH-DTU365R
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric presents the DTU365R Double Throw Safety Switch, an essential component for power distribution systems, particularly in safety-critical applications. With a robust 400A capacity and rated for 600VAC, this switch is designed to ensure reliable operation while providing necessary safety features. Its NEMA 3R enclosure offers weather-resistant protection, making it suitable for various environments, while the three-pole configuration enhances its versatility in managing electrical loads. This safety switch is a vital addition for professionals seeking dependable solutions in disconnects and powering systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States

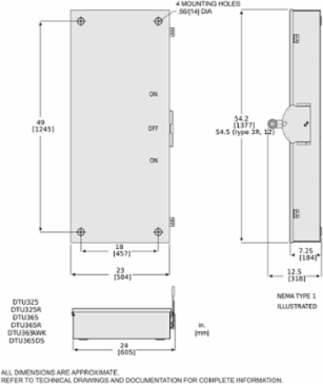

Depth7.25 in
Complementary Attributes
- Line Rated Current
- 400 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- H or K, R, J or T
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 177 kg CO2 eq., 177.24779060365515
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 373 kg CO2 eq., 372.60038896678407
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- none
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 1 282 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 90
- Width Nominal
- 24 in
- [Ue] Rated Operational Voltage
- 600 V AC250 V DC
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 63.049 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]184.79426439677087, 185 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.17647909899402248, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]547 kg CO2 eq., 547.0206826529308
Local Publishable Date2025-11-13
Stocking FlagN
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1940
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge1/0 AWG...750 kcmil aluminium/copper
Disconnector Device Typenon-fusible disconnect switch
Number Of Poles3
Product Or Component TypeDouble Throw Safety Switch
Series Namegeneral duty
Sustainable PackagingYes
Pep CodeENVPEP2503029EN
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal54.50 in
Certificate AgencyUL Listed
Short-circuit Current10 kA H or K100 kA R, J or T
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509045
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503029EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2503029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Halogene PerformanceHalogen free plastic parts product
Toxic Heavy Metal FreeYes
Carbon Footprint1281.8396057191349
Eu Rohs DirectiveCompliant
Nema Degree Of ProtectionNEMA 3R
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- Double Throw Safety Switch
