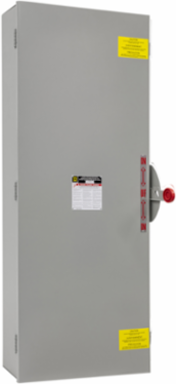

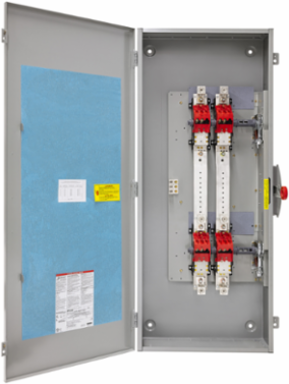

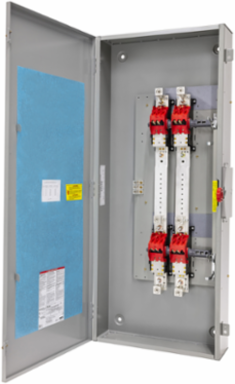

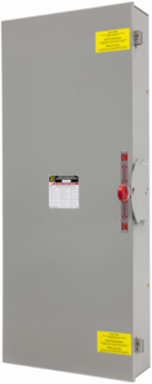

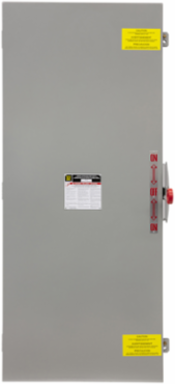

Square D DTU465 Double Throw Safety Switch 400A 600V 4 Pole NEMA 1
- MPN: DTU465
- PPN: SCH-DTU465
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for robust power management, the DTU465 Double Throw Safety Switch from Schneider Electric is designed to handle up to 400A at 600V, making it an essential component for efficient electrical distribution. This four-pole switch offers reliability and safety in power distribution applications, ensuring smooth transitions between power sources. Housed in a NEMA 1 enclosure, it is suitable for indoor use, providing a dependable solution for disconnecting and controlling electrical circuits in commercial and industrial settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States

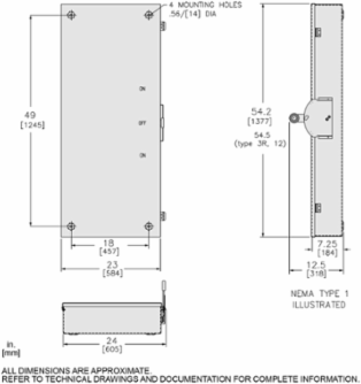

Depth8.88 in
Complementary Attributes
- Line Rated Current
- 400 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- H or K, R, J or T
- Carbon Footprint Of The Distribution Phase [A4]
- 28.47603671505857, 28 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.027194703898407654, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 729 kg CO2 eq., 729.3609102039077
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- none
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Software Version
- v6.2.4
- Tightening Torque
- 550-550 lbf.in 53.49-304 mm² (1/0 AWG...750 kcmil)62.14-62.14 lbf.in 53.49-152 mm² (2 x 1/0 AWG...2 x 300 kcmil)
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 1631.4624
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 64.20 in
- Certificate Agency
- UL Listed
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 112.49 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
[Ue] Rated Operational Voltage600 V AC, 600 V DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]27 kg CO2 eq., 27.313156116445434
Carbon Footprint Of The Manufacturing Phase [A1 To A3]57 kg CO2 eq., 57.41618870530622
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge1/0 AWG...750 kcmil aluminium/copper
Disconnector Device Typenon-fusible disconnect switch
Number Of Poles4
Product Or Component TypeDouble Throw Safety Switch
Series Namegeneral duty
Sustainable PackagingYes
Total Lifecycle Carbon Footprint843 kg CO2 eq.
Pep CodeENVPEP2503029EN
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %90
Width Nominal28.40 in
Short-circuit Current10 kA H or K100 kA R, J or T
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509045
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503029EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint842.5934864446162
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 1
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Double Throw Safety Switch
