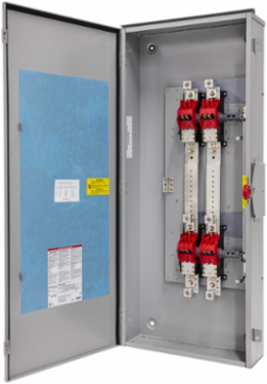

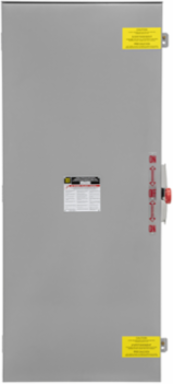

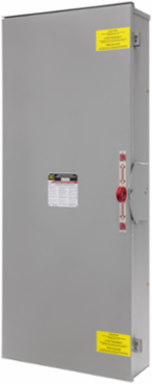

Square D DTU465R Double Throw Safety Switch 400A 600V 4 Pole NEMA 3R
- MPN: DTU465R
- PPN: SCH-DTU465R
- UNSPSC: 39121103
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric DTU465R Double Throw Safety Switch is designed to ensure reliable power distribution while prioritizing safety and functionality. With a capacity of 400A and a voltage rating of 600V, this four-pole switch offers versatile operation for both indoor and outdoor applications, thanks to its robust NEMA 3R enclosure. Ideal for environments that require dependable switching between two power sources, it serves as an essential component for any power distribution system, enhancing safety measures while facilitating efficient operation.
Features
- Reliable performance
- Long term durability
- Enclosed operating mechanism
- Meets or exceeds NEMA KS1
- CSA and UL certifed
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 8.88 in |
| Weight | 99790 g |
|---|
Complementary Attributes
| Ue Rated Operational Voltage | 600 V AC, 600 V DC |
|---|
| Line Rated Current | 400 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Fuse Type | H or K, R, J or T |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 242 kg CO2 eq., 242.2953017032705 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 509 kg CO2 eq., 509.3396276026765 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 1/0 AWG...750 kcmil aluminium/copper |
| Disconnector Device Type | non-fusible disconnect switch |
| Number Of Poles | 4 |
| Product Or Component Type | Double Throw Safety Switch |
| Series Name | general duty |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 1 734 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 28.40 in |
| Nbr. Of Units In Pkg. | 1 |
| Short Circuit Current | 10 kA H or K100 kA R, J or T |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 90 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 252.6112280021064, 253 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.2412445108029247, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 729 kg CO2 eq., 729.3609102039077 |
| Local Publishable Date | 2026-08-25 |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Composition | none |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v6.2.4 |
| Tightening Torque | 550-550 lbf.in 53.49-304 mm² (1/0 AWG...750 kcmil)62.14-62.14 lbf.in 53.49-152 mm² (2 x 1/0 AWG...2 x 300 kcmil) |
| Database Version | 2024-01 |
| Height Nominal | 64.20 in |
| Certificate Agency | UL Listed |
| Customs Code | 8536509045 |
| Halogen Free Status | Halogen free plastic parts product |
| Functional Unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 1631.4624 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503029EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-03-01 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Halogene Performance | Halogen free plastic parts product |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 1733.848312022764 |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | NEMA 3R |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503029EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | Double Throw Safety Switch |
|---|
