Telemecanique Sensors

Telemecanique Sensors XCSRK2A3 Telemecanique Safety switches XCS, Blank RFID Transducer for XCSRC3xxx

Telemecanique Safety switches XCS, Blank RFID Transducer for XCSRC3xxx
  • MPN: XCSRK2A3
  • PPN: TES-XCSRK2A3
  • UNSPSC: 39122205

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$90.42/ EA

Description

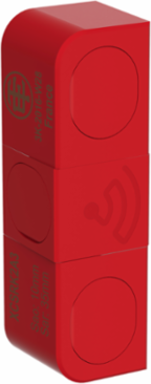

This blank transducer is part of the XCSR offer, a range of contactless RFID safety switches. The XCSR RFID contactless system is composed of a microprocessor-controlled switch and a transducer factory-paired with a unique code. This blank RFID transducer is dedicated to a new pairing with XCSRC30M12, XCSRC31AM12, XCSRC31MM12 and XCSRC32M12 RFID safety switches. For XCSRC3 safety switches , the reader and transducer are supplied together, already factory-paired with a unique code. However, the reader can be re-paired (twice only) with this blank transducer. Its dimensions are 105mm (width) x 3mm (depth) x 142mm (height). It weighs 0.02kg The XCSR safety switches are dedicated to highly tamper-proof protection of operators by stopping the machine when the gate is opened (transfer lines, assembly lines, automated equipment, machine tools, etc.). This blank transponder is provided with 2 blanking plugs. Contactless safety switches are specifically designed for industrial machines fitted with doors, covers or guards with imprecise guiding. They are ideally suited for machines subjected to frequent washing or liquid spray.

Specifications

Specifications

Range Of Product
Telemecanique Safety switches XCS
Accessory / Separate Part Category
RFID accessory
Accessory / Separate Part Type
RFID actuator
Accessory / Separate Part Designationblank RFID transducer
Quantity Per Set1
Accessory / Separate Part DestinationRFID safety switch

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1804002EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Product Compatibility
XCSRC3
Net Weight
0.02 kg
Length50 mm
