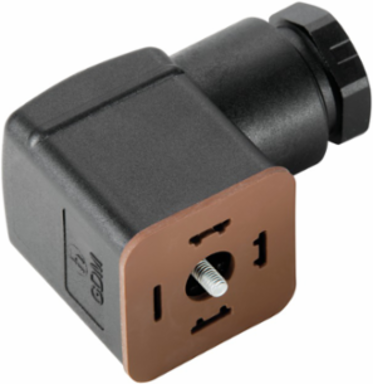

Weidmuller 1934880000 SAIB-VSA-3P/230/9-H/LD
- MPN: 1934880000
- PPN: WDM-1934880000
CAD
$13.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAIB-VSA-3P/230/9-H/LD
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 28 g |
|---|
Classifications
| ETIM 6.0 | EC002062 |
|---|---|
| eClass 9.0 | 27-44-01-05 |
| eClass 10.0 | 27-44-01-05 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-06-03-12 |
| UNSPSC | 30-21-18-10 |
Technical Data Customisable Plug-In Connectors
| Cable diameter, max. | 8 mm |
|---|---|
| Cable glands | PG 9 |
| Connection cross-section, max. | 1.5 mm² |
| Housing main material | PA 6 GF |
| Number of poles | 3 |
| Type of connection | Screw connection |
| Cable diameter, min. | 6 mm |
|---|---|
| Coding | Design A (18 mm) |
| Connection cross-section, min. | 0.34 mm² |
| Insulation strength | 108 Ω |
| Rated voltage | 230 V |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
