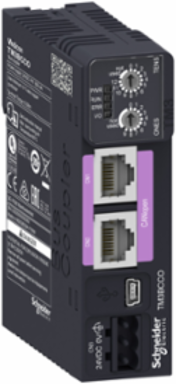

Schneider Electric TM3BCCO Modicon TM3 Bus Coupler Module, IP20, CANopen, 0.10 kg, 27 mm Width

MPN: TM3BCCO
PPN: SCH-TM3BCCO

$353.26

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Modicon TM3 Bus Coupler Module from Schneider Electric is designed to bridge connectivity within automation systems. With an IP20 rating, it ensures reliable performance in controlled environments, making it suitable for a variety of industrial applications. The CANopen communication interface allows for seamless integration with other devices in the network, enhancing flexibility and efficiency. Compactly designed at just 27 mm in width, this module is an excellent choice for optimizing space in control cabinets while delivering dependable functionality.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Indonesia, Mexico, Singapore, United States

Depth	70 mm

Communications & Management Attributes

Communication Network Type	CANopen
Communication Service	CANopen slave device profile

Communication Port Protocol	CANopen

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Local Signalling	1 LED green/red PWR (System Status), 1 LED green/red RUN (Run), 1 LED green/red ERR (Error), 1 LED green/red I/O status
Carbon Footprint Of The Distribution Phase [A4]	0.0219334183, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0004568426
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	155 kg CO2 eq., 154.51
Local Publishable Date	2026-01-12
Stocking Flag	N
Device Type	PLC System - PLC Component
Traceability	Yes
Use Carbon Footprint	154.51
Weee Product Category	4
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Current Consumption	0.8 A 24 V DC internal supply maximum 7 expansion modules
Front Installation Possible	false
Product Availability	Stock - Normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon TM3
Software Version	EIME v5.7.0.3
Supporting Protocol For Can	true
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Topology	daisy chain
Transmission Rate	20 kbit/s...1 Mbit/s
Web Services	web server, USB
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Potential Separation Present	false
Number Of Hw Interfaces Can	1
Radio Standard Lte	false
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Indonesia
Energy Model - Use [B6]	Electricity mix; AC; < 1kV; EU-27
Height Nominal	96.5 mm
Appendant Operation Agent (Ex Ia)	false
Certified For Ul Hazardous Location Group A (Acetylene)	false
Certified For Ul Hazardous Location Group C (Ethylene))	false
Certified For Ul Hazardous Location Group E (Metal Dusts)	false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)	false
Performance Level According To En Iso 13849-1	none
Radio Standard Wi-fi 802.11	false
Supporting Protocol For Data-highway	false
Supporting Protocol For Interbus-safety	false
Wall Mounting/Direct Mounting Possible	false
Package Weight(Lbs)	172.000 g
Warranty (In Months)	18
Air Pollution (M3) Operational Energy Use [B6]	6650.1
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]	154.51
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	576.08
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	3085.9
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	2693.5
Water Pollution (M3) Operational Energy Use [B6]	6375.6

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Certificate Agency	CE, cULus, EAC, RCM, UKCA, EU-RO MR
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0665940841, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	3 kg CO2 eq., 3.0341605273
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1712005EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2010
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Bearing Track Assembly Possible	true
Fixing Mode	by clipping locks (rail)by screws (mounting plate)
Network Type	DC
Product Or Component Type	I/O distributed module
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	Yes
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	158 kg CO2 eq.
Vibration Resistance	3M4 on 35 mm DIN rail
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Dc Supply Voltage	20.4-28.8 V
System Accessory	true
Radio Standard Egprs	false
Pep Code	ENVPEP1712005EN
Pep Verification Date	2018-06-01
Type Of Verification For The Pep	Independent external review
Functional-unit Description	To communicate I/Os data coming from TM3 I/O Modules connected on the right side of the TM3 Bus Controller, up to the main controller via the Fieldbus Ethernet at 3.6 W 100% of the time.
Functional-unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	315.36
Energy Model - Installation [A5]	Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; < 1kV; EU-27
Width Nominal	27 mm
Appendant Operation Agent (Ex Ib)	false
Certified For Ul Hazardous Location Group B (Hydrogen)	false
Certified For Ul Hazardous Location Group D (Propane))	false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)	false
Io-link Master Present	false
Rack-assembly Possible	true
Supporting Protocol For As-interface Safety At Work	false
Supporting Protocol For Ethernet/Ip	false
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Take-back	No
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]	0.6445
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	1753.8
Net Use Of Fresh Water (M3) Operational Energy Use [B6]	560.23
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	2693.5
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	392.4
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	392.4
Customs Code	8517620090

Environment Attributes Main

Product Compatibility	logic controller, motion controller
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-10-60 °C-10-60 °C
Circularity Profile	ENVEOLI1712005EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1712005EN
Pcr Version	PCR-ed3-EN-2015 04 02

Take Back	No
China Rohs Regulation	X
Carbon Footprint	157.6331448723
Ambient Air Temperature For Storage	-25-70 °C-25-70 °C
Environmental Disclosure	ENVPEP1712005EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2018-06-01
Type Of Verification For The Pep	Independent external review
