Weidmuller 1383080000 SAIB-WDF-8-M20
- MPN: 1383080000
- PPN: WDM-1383080000
CAD
$26.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

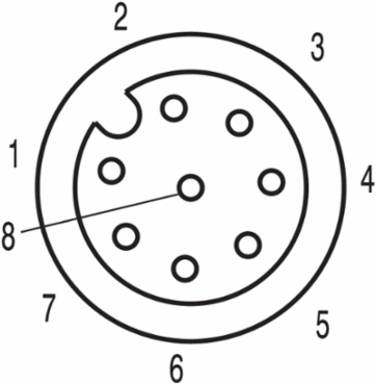

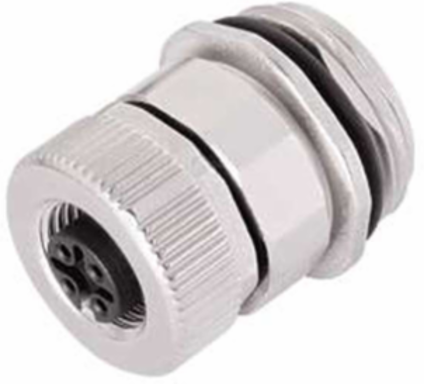

Panel feed-through, Number of poles: 8, Coding: A, M12, 60 V
Documentation & Downloads
Specifications
General Data
| Cable glands | M 20 |
|---|---|
| Conductor cross-section, max. | 0.5 mm² |
| Connection thread | M12 |
| Contact surface | Gold-plated |
| Insulation strength | 108 Ω |
| Plugging cycles | ≥ 100 |
| Protection degree | IP67 |
| Rated voltage | 60 V |
| Shield connection | No |
| Type of connection | Screw connection |
| Coding | A |
|---|---|
| Conductor cross-section, min. | 0.14 mm² |
| Contact material | CuZn |
| Housing main material | Zinc diecast |
| Number of poles | 8 |
| Pollution severity | 3 |
| Rated current | 2 A |
| Rated voltage (text) | 250 V (4-pole) / 60 V (5-pole), 60 V (8-pole) / 30 V (12-pole) |
| Temperature range of housing | -40 … +85 ° C |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 32 g |
|---|
Classifications
| ETIM 6.0 | EC002925 |
|---|---|
| eClass 9.0 | 27-44-01-06 |
| eClass 10.0 | 27-44-01-06 |
| ETIM 7.0 | EC002925 |
|---|---|
| eClass 9.1 | 27-44-01-06 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
