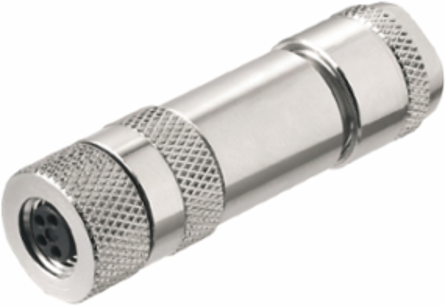

Weidmuller 1010080000 SAIBM-M8-3P-(IF)
- MPN: 1010080000
- PPN: WDM-1010080000
CAD
$21.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sockets prefabricated to customer spec., M8, Female socket, straight
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 30 g
Standards
- Certificate no. (cULus)
- E307231
Classifications
- ETIM 6.0
- EC002062
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
UNSPSC30-21-18-01
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 5.5 mm
- Coding
- none
- Connection cross-section, min.
- 0.14 mm²
- Housing main material
- CuZn
- Number of poles
- 3
- Pollution severity
- 3
- Rated current
- 4 A
- Shield connection
- Yes
- Threaded ring material
- Diecast zinc
Cable diameter, min.3.5 mm
Connection cross-section, max.0.5 mm²
Contact surfaceGold-plated
Insulation strength108 Ω
Plugging cycles≥ 100
Protection degreeIP67
Rated voltage60 V
Temperature range of housing-40 … +85 ° C
Type of connectionScrew connection
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 85 °C
- Operating temperature, max.
- 85 °C
Operating temperature range, min.-25 °C
Operating temperature, min.-40 °C
