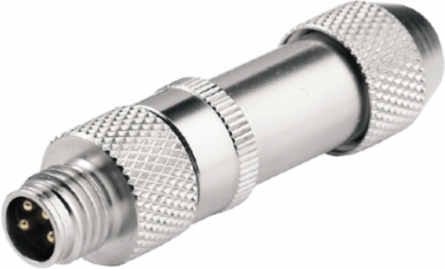

Weidmuller 1467570000 SAISM-4/9S-M8
- MPN: 1467570000
- PPN: WDM-1467570000
CAD
$29.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Plugs prefabricated to customer spec., M8, pin, straight
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 35 g
Standards
- Certificate no. (cULus)
- E307231
Classifications
- ETIM 6.0
- EC002062
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 8 mm
- Coding
- none
- Connection cross-section, min.
- 0.14 mm²
- Housing main material
- CuZn
- Number of poles
- 4
- Pollution severity
- 3
- Rated current
- 4 A
- Shield connection
- Yes
- Threaded ring material
- Diecast zinc
Cable diameter, min.6 mm
Connection cross-section, max.0.5 mm²
Contact surfaceGold-plated
Insulation strength108 Ω
Plugging cycles≥ 100
Protection degreeIP67
Rated voltage30 V
Temperature range of housing-40 … +85 ° C
Type of connectionScrew connection
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 85 °C
Operating temperature, min.-40 °C
