Weidmuller 1861220000 SAIE-M12S-4-0.5U-PG9
- MPN: 1861220000
- PPN: WDM-1861220000
CAD
$13.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

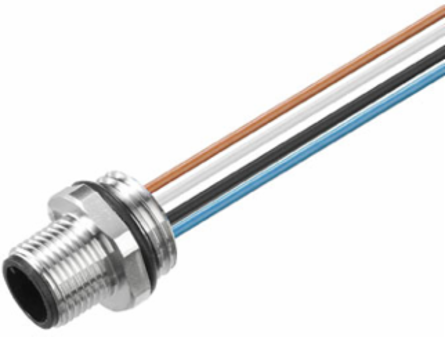

Built-in plugs, M12, pin, straight, PG 9, Number of poles: 4, Front mounting
Documentation & Downloads
Specifications
General Data
- Cable glands
- PG 9
- Connection thread
- M12
- Core cross-section
- 0.34 mm²
- Material
- PVC
- Plugging cycles
- ≥ 100
- Rated current
- 4 A (4- and 5-pole) / 2 A (8-pole)
- Rated voltage (text)
- 250 V (4-pole) / 125 V (5-pole) / 60 V (8-pole)
- Temperature range of housing
- -30…+90 °C
CodingA
Contact surfaceGold-plated
Housing main materialBrass, nickel-plated

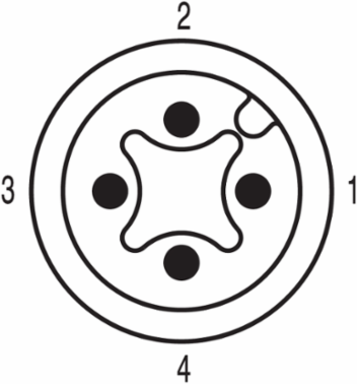

Number of poles4
Protection degreeIP67, when screwed in
Rated voltage250 V
Strand / cable length0.5 m
Approvals
- Approvals
- CULUS
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 24 g
Standards
- Connector standard
- IEC 61076-2-101
- Certificate no. (cULus)
- E307231
Certificate No. (cURus)E307231
Classifications
- ETIM 6.0
- EC002635
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
UNSPSC30-21-18-10
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 90 °C
- Operating temperature, max.
- 90 °C
Operating temperature range, min.-30 °C
Operating temperature, min.-30 °C
