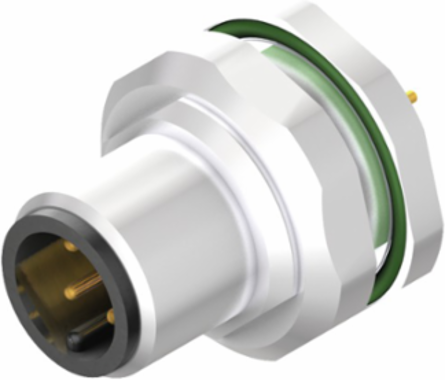

Weidmuller 2421860000 SAIE-M12S-5-H12TL-M16
- MPN: 2421860000
- PPN: WDM-2421860000
CAD
$11.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, M12, M 16, Number of poles: 5, Rear panel mounting
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform

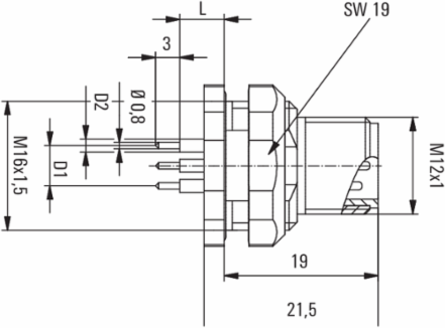

Dimensions And Weights
- Net weight
- 20 g

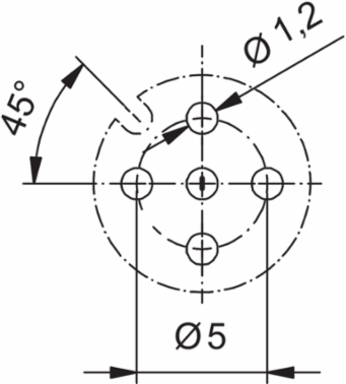

Technical Data Of Pcb Plug-In Connector
- Coding
- A
- Mounting height
- 12 mm

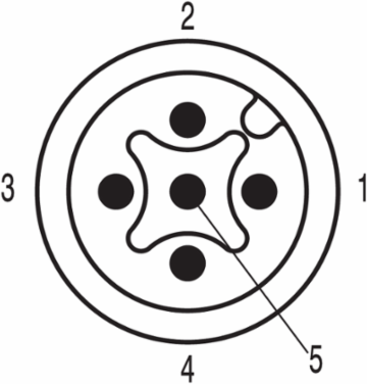

- Number of poles
- 5

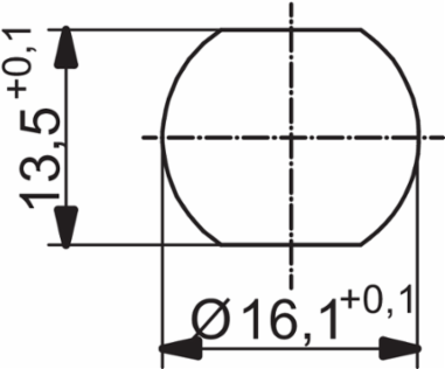

- Type of mounting
- Rear panel mounting
- Rated voltage (text)
- 250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
- Temperature range
- -30…80 °C
- Contact surface
- Au (Gold)
- Connection thread
- M12
- Mounting torque range
- 1.2 Nm
- Pollution severity
- 3 (2 within the sealed area)
- Contact material
- CuZn
- Material of the flange-mounted housing
- Nickel-plated CuZn
HousingsM12 pin
Mounting threadM16
Shield connectionNo
Rated voltage60 V
Rated current4 A (4- and 5-pole) / 2 A (8-pole)
Protection degreeIP67
Housing main materialCuZn, nickel-plated
Tightening torqueM12: 0.8 Nm
Insulation strength100 MΩ
Plugging cycles≥ 100
Lock nut materialNickel-plated CuZn
Material Data
- Contact material
- CuZn
Contact surfaceAu (Gold)
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Insulation strength
- 100 MΩ
- Pin series quantity
- 1
- Protection degree
- IP67
Number of poles5
Plugging cycles≥ 100
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
