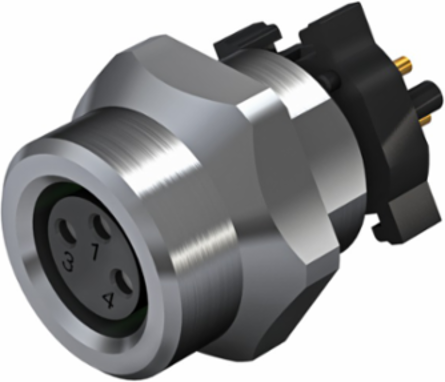

Weidmuller 2423250000 SAIE-M8B-5-F9THR
- MPN: 2423250000
- PPN: WDM-2423250000
CAD
$9.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

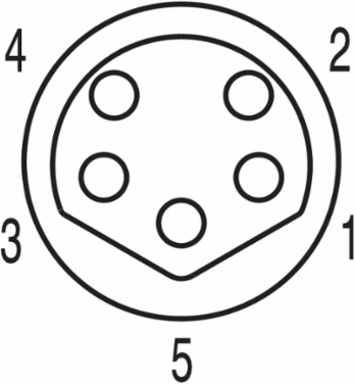

Built-in plugs, M8, Number of poles: 5, Front mounting
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform

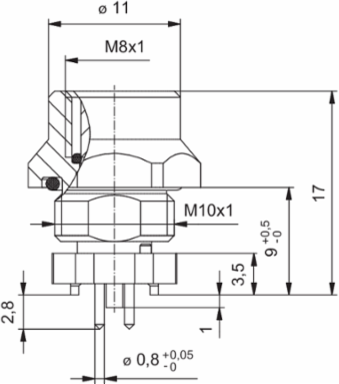

Dimensions And Weights
- Net weight
- 9.4 g
Technical Data Of Pcb Plug-In Connector
- Coding
- B
- Housings
- M8 socket
- Mounting thread
- M10
- Shield connection
- No
- Rated voltage
- 30 V
- Rated current
- 4 A
- Protection degree
- IP67
- Housing main material
- CuZn, nickel-plated
- Tightening torque
- M8: 0.5 Nm

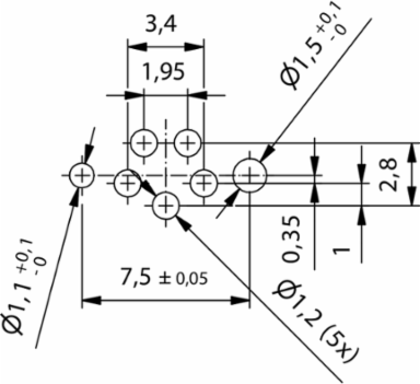

- Mounting onto the PCB
- THT/THR solder connection
- Pollution severity
- 3 (2 within the sealed area)
- Contact material
- CuZn
- Lock nut material
- Nickel-plated CuZn
- Grouting material
- PUR
Housing surfacenickel-plated
Mounting height9 mm
Number of poles5
Type of mountingFront mounting
Rated voltage (text)60 V (3-pole) / 30 V (4-,5- and 8-pole)
Temperature range-30…80 °C
Contact surfaceAu (Gold)
Connection threadM8
Mounting torque range0.8 Nm
Insulation strength100 MΩ
Plugging cycles≥ 100
Seal materialFPM
Material of the flange-mounted housingNickel-plated CuZn
Material Data
- Contact material
- CuZn
Contact surfaceAu (Gold)
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Mounting onto the PCB
- THT/THR solder connection
- Number of poles
- 5
- Plugging cycles
- ≥ 100
Insulation strength100 MΩ
Pin series quantity1
Protection degreeIP67
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
