Weidmuller

Weidmuller 2423670000 SAIE-M8B-5S-F13TL

  • MPN: 2423670000
  • PPN: WDM-2423670000

CAD

$12.91

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

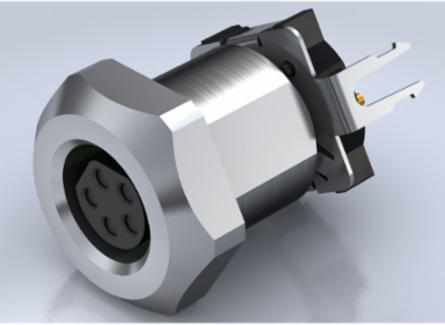

Built-in plugs, M8, Number of poles: 5, Front mounting

Documentation & Downloads

Specifications

Approvals

ROHSConform

Dimensions And Weights

Net weight8.56 g

Technical Data Of Pcb Plug-In Connector

CodingB
HousingsM8 socket
Mounting threadM10
Shield connectionYes
Rated voltage30 V
Rated current4 A
Protection degreeIP67
Housing main materialCuZn, nickel-plated
Tightening torqueM8: 0.5 Nm
Insulation strength100 MΩ
Plugging cycles≥ 100
Seal materialFPM
Material of the flange-mounted housingNickel-plated CuZn
Housing surfacenickel-plated

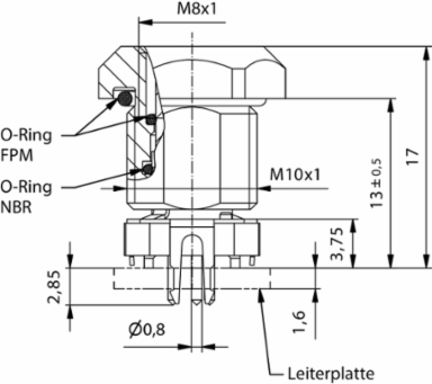

Mounting height13 mm

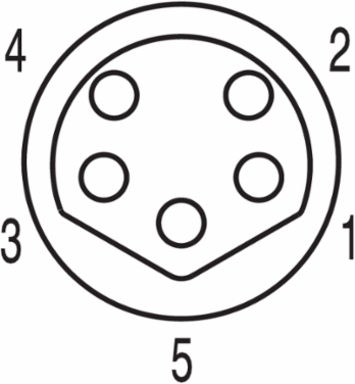

Number of poles5
Type of mountingFront mounting
Rated voltage (text)60 V (3-pole) / 30 V (4-,5- and 8-pole)
Temperature range-30…80 °C
Contact surfaceAu (Gold)
Connection threadM8
Mounting torque range0.8 Nm
Pollution severity3 (2 within the sealed area)
Contact materialCuZn
Lock nut materialNickel-plated CuZn
Grouting materialPUR

Material Data

Contact materialCuZn
Contact surfaceAu (Gold)

Classifications

ETIM 6.0EC002638
eClass 9.027-44-03-09
eClass 10.027-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09

System Parameters

Insulation strength100 MΩ
Pin series quantity1
Protection degreeIP67
Number of poles5
Plugging cycles≥ 100

Environmental Product Compliance

REACH SVHCLead 7439-92-1
