Weidmuller 2422770000 SAIE-M8B-8S-H10SMT

  • MPN: 2422770000
  • PPN: WDM-2422770000

CAD

$13.27

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

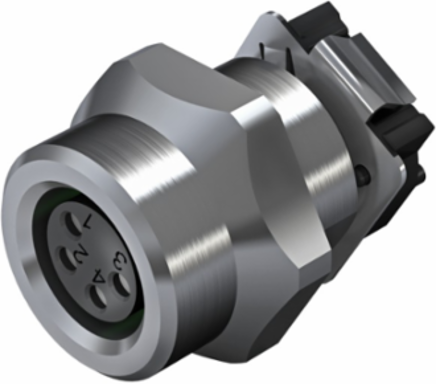

Built-in plugs, M8, Number of poles: 8, Rear panel mounting

Documentation & Downloads

Specifications

Approvals

ROHSConform

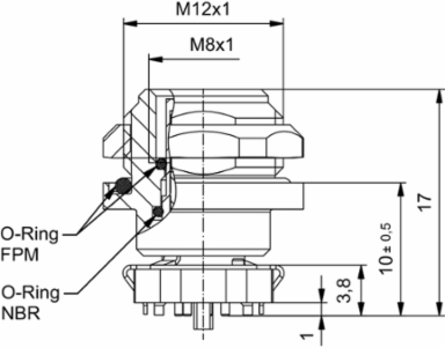

Dimensions And Weights

Net weight10.88 g

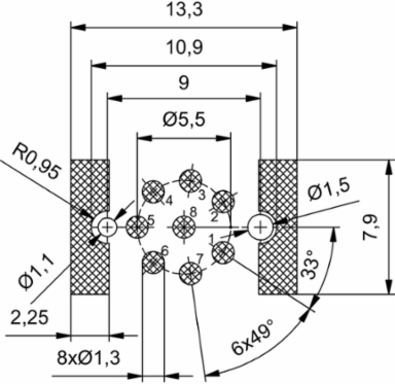

Technical Data Of Pcb Plug-In Connector

CodingM8 = none
HousingsM8 socket
Mounting threadM10
Shield connectionYes
Rated voltage30 V
Rated current4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
Protection degreeIP67
Housing main materialCuZn, nickel-plated
Tightening torqueM8: 0.5 Nm
Insulation strength100 MΩ
Plugging cycles≥ 100
Seal materialFPM
Material of the flange-mounted housingNickel-plated CuZn
Housing surfacenickel-plated
Mounting height10 mm

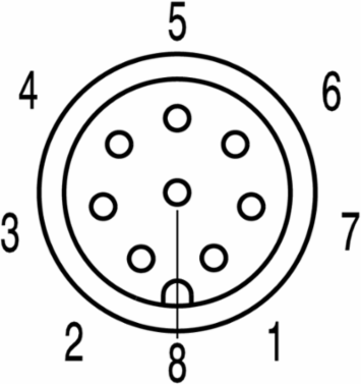

Number of poles8
Type of mountingRear panel mounting
Rated voltage (text)30 V
Temperature range-30…80 °C
Contact surfaceAu (Gold)
Connection threadM8
Mounting torque range0.8 Nm
Pollution severity3 (2 within the sealed area)
Contact materialCuZn
Lock nut materialNickel-plated CuZn
Grouting materialPUR

Material Data

Contact materialCuZn
Contact surfaceAu (Gold)

Classifications

ETIM 6.0EC002638
eClass 9.027-44-03-09
eClass 10.027-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09

System Parameters

Insulation strength100 MΩ
Pin series quantity1
Protection degreeIP67
Number of poles8
Plugging cycles≥ 100

Environmental Product Compliance

REACH SVHCLead 7439-92-1
SAIE-M8B-8S-H10SMT
SAIE-M8B-8S-H10SMT
SAIE-M8B-8S-H10SMT
SAIE-M8B-8S-H10SMT
