Weidmuller 2423400000 SAIE-M8B-8S-H6TL
- MPN: 2423400000
- PPN: WDM-2423400000
CAD
$11.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

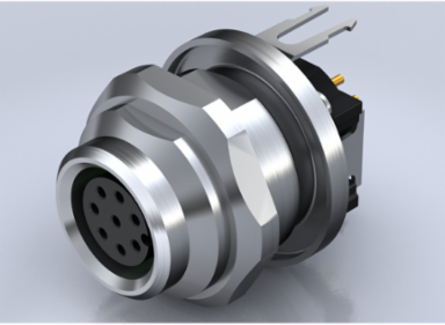

Built-in plugs, M8, M 12, Number of poles: 8, Rear panel mounting
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform

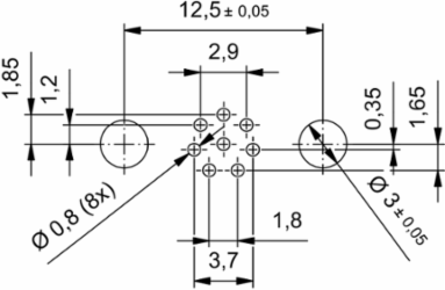

Dimensions And Weights
- Net weight
- 10.4 g
Technical Data Of Pcb Plug-In Connector
- Coding
- M8 = none
- Housings
- M8 socket
- Mounting thread
- M 12
- Shield connection
- No
- Rated voltage
- 30 V
- Rated current
- 4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
- Protection degree
- IP67
- Housing main material
- CuZn, nickel-plated
- Tightening torque
- M8: 0.5 Nm
- Insulation strength
- 100 MΩ
- Plugging cycles
- ≥ 100
- Seal material
- FPM
- Material of the flange-mounted housing
- Nickel-plated CuZn
Housing surfacenickel-plated

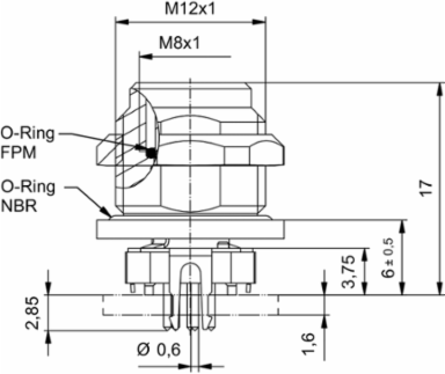

Mounting height6 mm

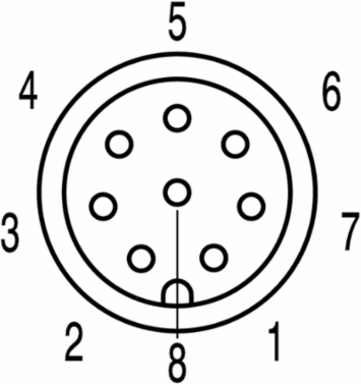

Number of poles8
Type of mountingRear panel mounting
Rated voltage (text)60 V (3-pole) / 30 V (4-,5- and 8-pole)
Temperature range-30…80 °C
Contact surfaceAu (Gold)
Connection threadM8
Mounting torque range1.2 Nm
Pollution severity3 (2 within the sealed area)
Contact materialCuZn
Lock nut materialNickel-plated CuZn
Grouting materialPUR
Material Data
- Contact material
- CuZn
Contact surfaceAu (Gold)
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Insulation strength
- 100 MΩ
- Pin series quantity
- 1
- Protection degree
- IP67
Number of poles8
Plugging cycles≥ 100
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
