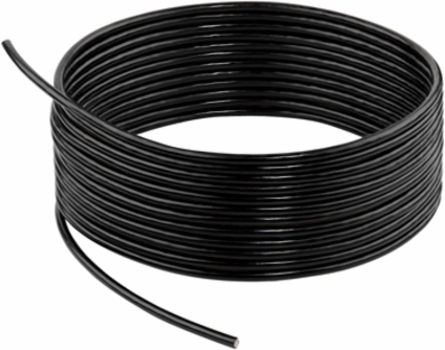

Weidmuller 1412620000 SAIH-5x0.34(PVC)
- MPN: 1412620000
- PPN: WDM-1412620000
CAD
$4.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sensor/actuator line, Number of poles : 5, Shielded: No, Sheath material: PVC, Halogen: Yes
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
Technical Specifications For Cable
| Number of poles | 5 |
|---|---|
| Outside diameter | 5.7 ± 0.2 mm |
| Insulation | PVC |
| Sheath material | PVC |
| Halogen | Yes |
| Temperature range, stationary | -30...80 °C |
| Suitable for cable carriers | No |
| Resistant to welding beads | No |
| Core cross-section | 0.34 mm² |
|---|---|
| Shielded | No |
| Colour coding | brown, white, blue, black, grey |
| Sheathing colour | black |
| Temperature range, moving | -5...80 °C |
| Outer cladding in accordance with UL AWM style | 2464 (80 °C / 300 V) |
| Torsion resistance | 0 °/m |
| Configurable cable length | No |
Classifications
| ETIM 6.0 | EC000830 |
|---|---|
| eClass 9.0 | 27-06-18-05 |
| eClass 10.0 | 27-06-18-01 |
| ETIM 7.0 | EC003249 |
|---|---|
| eClass 9.1 | 27-06-90-90 |
Dimensions And Weights
| Net weight | 46.86 g |
|---|
