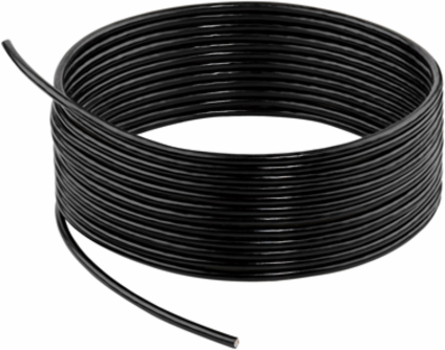

Weidmuller 1232650000 SAIH-CD-2X0.34/0.22-PVC
- MPN: 1232650000
- PPN: WDM-1232650000
CAD
$6.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Bus line, Number of poles: 5, Shielded: Yes, LED: No, Sheath material: PVC, Halogen: Yes
Documentation & Downloads
Specifications
Technical Specifications For Cable
| Number of poles | 5 |
|---|---|
| Outside diameter | 7 ± 0.3 mm |
| Insulation | PVC |
| Sheath material | PVC |
| Halogen | Yes |
| Temperature range, stationary | -40...80 °C |
| Suitable for cable carriers | No |
| Bending radius, min., moving | 10 x cable diameter |
| Speed | 180 m/min |
| Resistant to welding beads | No |
| Irradiation crosslinked | No |
| Wire cross section | 2 x 0.34 mm² + 2 x 0.22 mm² |
|---|---|
| Shielded | Yes |
| Colour coding | white, blue, red, black |
| Sheathing colour | black |
| Temperature range, moving | -10...80 °C |
| Outer cladding in accordance with UL AWM style | 2571 (80 °C) |
| Bending radius, min., stationary | 5 x cable diameter |
| Acceleration | 5 m/s² |
| Bending cycles | 3 Mio |
| Hybrid cable | No |
| Configurable cable length | No |
Dimensions And Weights
| Net weight | 52 g |
|---|
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Classifications
| ETIM 6.0 | EC000830 |
|---|---|
| eClass 9.0 | 27-06-18-05 |
| eClass 10.0 | 27-06-18-01 |
| ETIM 7.0 | EC003249 |
|---|---|
| eClass 9.1 | 27-06-90-90 |
