Weidmuller 1925582500 SAIL-M12BG-4-25V

MPN: 1925582500
PPN: WDM-1925582500

$40.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

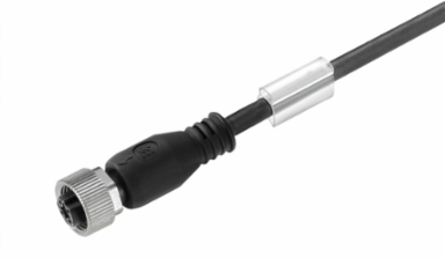

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 25 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Documentation & Downloads

Specifications

Approvals

Approvals	CULUS
UL File Number Search	E307231

ROHS	Conform

Dimensions And Weights

Net weight	1,020 g

Standards

Connector standard	IEC 61076-2-101

Certificate no. (cULus)	E307231

General Technical Data

AF size	12 mm
Connection thread	M12
Threaded ring material	Diecast zinc
Protection degree	IP65, IP66, IP67, IP68, when screwed in
LED	No
Rated current	4 A
Temperature range of housing	-25…+80 °C
Plugging cycles	≥ 100
jumpered	No

Version	Female socket, straight
Housing main material	PUR

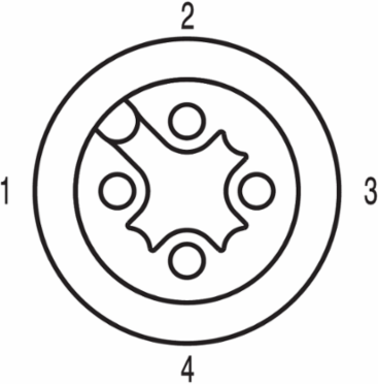

Coding	A
Contact surface	Gold-plated
Rated voltage	250 V
Insulation strength	108 Ω
Tightening torque	M12: 0.8 - 1.2 Nm
Pollution severity	3

Technical Specifications For Cable

Number of poles	4
Outside diameter	5.3 ± 0.2 mm
Shielded	No

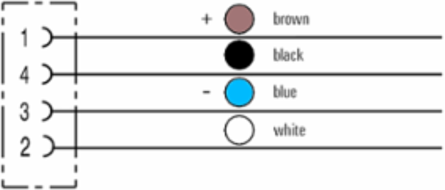

Colour coding	brown, white, blue, black
Sheathing colour	black
Temperature range, moving	-5...80 °C
Outer cladding in accordance with UL AWM style	2464 (80 °C / 300 V)
Torsion resistance	0 °/m
Configurable cable length	No

Core cross-section	0.34 mm²
Cable length	25 m
Insulation	PVC
Sheath material	PVC
Halogen	Yes
Temperature range, stationary	-30...80 °C
Suitable for cable carriers	No
Resistant to welding beads	No
