Weidmuller 1948720150 SAIL-M8BWR-3-1.5V
- MPN: 1948720150
- PPN: WDM-1948720150
CAD
$8.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

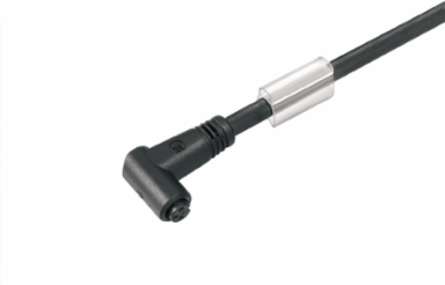

Sensor/actuator line, One end without connector, M12 / M8, Number of poles : 3, 1.5 m, Socket, angled, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Documentation & Downloads
Specifications
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 47 g |
|---|
Standards
| Connector standard | IEC 61076-2-101, IEC 61076-2-104 |
|---|
| Certificate no. (cULus) | E307231 |
|---|
General Technical Data
| Version | Socket, angled |
|---|---|
| Housing main material | PUR |
| Coding | none |
| Contact surface | Gold-plated |
| Rated voltage | 60 V |
| Insulation strength | 108 Ω |
| Plugging cycles | ≥ 100 |
| jumpered | No |
| Connection thread | M12 / M8 |
|---|---|
| Threaded ring material | Brass, nickel-plated |
| Protection degree | IP65, when screwed in |
| LED | No |
| Rated current | 4 A |
| Temperature range of housing | -25…+80 °C |
| Pollution severity | 3 |
Technical Specifications For Cable

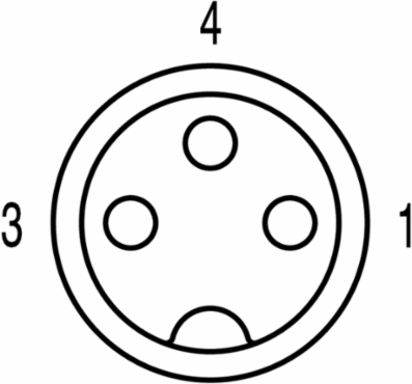

| Number of poles | 3 |
|---|---|
| Outside diameter | 4.5 ± 0.2 mm |
| Shielded | No |
| Colour coding | brown, blue, black |
| Sheathing colour | black |
| Temperature range, moving | -5...80 °C |
| Outer cladding in accordance with UL AWM style | 2464 (80 °C / 300 V) |
| Torsion resistance | 0 °/m |
| Configurable cable length | No |
| Core cross-section | 0.25 mm² |
|---|---|
| Cable length | 1.5 m |
| Insulation | PVC |
| Sheath material | PVC |
| Halogen | Yes |
| Temperature range, stationary | -30...80 °C |
| Suitable for cable carriers | No |
| Resistant to welding beads | No |
Classifications
| ETIM 6.0 | EC001855 |
|---|---|
| eClass 9.0 | 27-06-03-11 |
| eClass 10.0 | 27-06-03-11 |
| ETIM 7.0 | EC001855 |
|---|---|
| eClass 9.1 | 27-06-03-11 |
| UNSPSC | 26-12-16-13 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature range, max. | 80 °C |
|---|---|
| Operating temperature, max. | 80 °C |
| Operating temperature range, min. | -5 °C |
|---|---|
| Operating temperature, min. | -25 °C |
