Weidmuller 1948720500 SAIL-M8BWR-3-5.0V
- MPN: 1948720500
- PPN: WDM-1948720500
CAD
$11.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

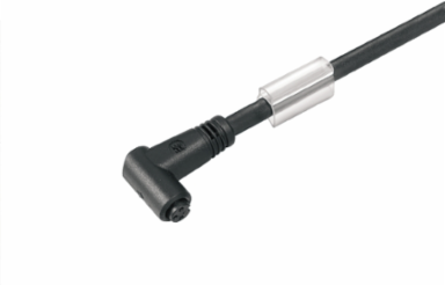

Sensor/actuator line, One end without connector, M12 / M8, Number of poles : 3, 5 m, Socket, angled, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 144 g
Standards
- Connector standard
- IEC 61076-2-101, IEC 61076-2-104
Certificate no. (cULus)E307231
General Technical Data
- Version
- Socket, angled
- Housing main material
- PUR
- Coding
- none
- Contact surface
- Gold-plated
- Rated voltage
- 60 V
- Insulation strength
- 108 Ω
- Plugging cycles
- ≥ 100
- jumpered
- No
Connection threadM12 / M8
Threaded ring materialBrass, nickel-plated
Protection degreeIP65, when screwed in
LEDNo
Rated current4 A
Temperature range of housing-25…+80 °C
Pollution severity3
Technical Specifications For Cable
- Number of poles
- 3
- Outside diameter
- 4.5 ± 0.2 mm
- Shielded
- No
- Colour coding
- brown, blue, black
- Sheathing colour
- black
- Temperature range, moving
- -5...80 °C
- Outer cladding in accordance with UL AWM style
- 2464 (80 °C / 300 V)
- Torsion resistance
- 0 °/m
- Configurable cable length
- No
Core cross-section0.25 mm²
Cable length5 m
InsulationPVC
Sheath materialPVC
HalogenYes
Temperature range, stationary-30...80 °C
Suitable for cable carriersNo
Resistant to welding beadsNo
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-11
- eClass 10.0
- 27-06-03-11
ETIM 7.0EC001855
eClass 9.127-06-03-11
UNSPSC26-12-16-13
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 80 °C
- Operating temperature, max.
- 80 °C
Operating temperature range, min.-5 °C
Operating temperature, min.-25 °C
