Weidmuller 1896990150 SAIL-VSA-DS-1.5U
- MPN: 1896990150
- PPN: WDM-1896990150
CAD
$19.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

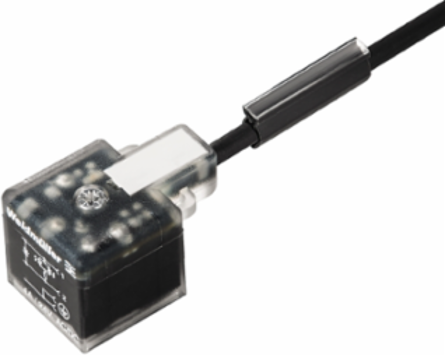

Valve plug, One end without connector - valve plug
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 127 g
General Technical Data
- Version
- One end without connector - valve plug
- Coding
- Design A (18 mm)
- LED
- Yes
- Rated current
- 4 A
- Plugging cycles
- ≥ 100
Housing main materialTPU
Protection degreeIP67, when screwed in
Rated voltage24 V
Temperature range of housing-25…+80 °C
Pollution severity3
Technical Specifications For Cable
- Number of poles
- 4 (3 + PE)
- Cable length
- 1.5 m
- Colour coding
- blue, brown, Green/yellow, black, white
- Sheathing colour
- black (similar to RAL 9005)
- Temperature range, moving
- -30...90 °C
- Suitable for cable carriers
- Yes
- Bending radius, min., moving
- 10 x cable diameter
- Speed
- 200 m/min
Core cross-section0.34 mm²
ShieldedNo
Sheath materialPUR
HalogenNo
Temperature range, stationary-40...90 °C
Bending radius, min., stationary5 x cable diameter
Acceleration5 m/s²
Resistant to welding beadsNo
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-12
- eClass 10.0
- 27-06-03-12
ETIM 7.0EC001855
eClass 9.127-06-03-11
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
