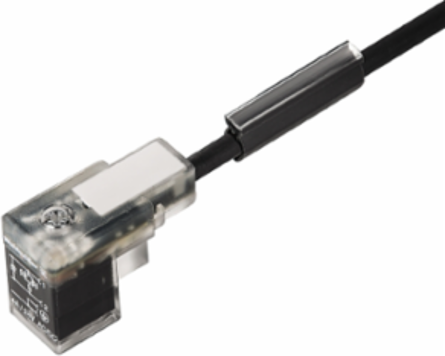

Weidmuller 1935981500 SAIL-VSCD-15Q
- MPN: 1935981500
- PPN: WDM-1935981500
CAD
$35.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
, One end without connector - valve plug, CD
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 463 g |
|---|
General Technical Data
| Version | One end without connector - valve plug |
|---|---|
| Protection degree | IP67, when screwed in |
| Rated voltage | 24 V |
| Temperature range of housing | -25…+80 °C |
| Coding | DIN design C (8 mm) |
|---|---|
| LED | Yes |
| Rated current | 4 A |

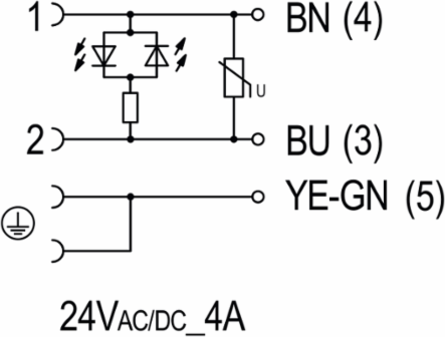

| All valve plugs are fitted with protective circuits | Varistor |
Technical Specifications For Cable
| Number of poles | 3 |
|---|---|
| Cable length | 15 m |
| Core cross-section | 0.75 mm² |
|---|
Classifications
| ETIM 6.0 | EC001855 |
|---|---|
| eClass 9.0 | 27-06-03-12 |
| eClass 10.0 | 27-06-03-12 |
| ETIM 7.0 | EC001855 |
|---|---|
| eClass 9.1 | 27-06-03-11 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
