Weidmuller 1857731000 SAIL-VSCD-M12W-10U
- MPN: 1857731000
- PPN: WDM-1857731000
CAD
$32.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

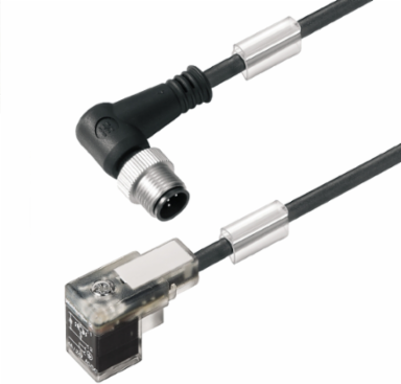

Valve plug, 90° plug - valve plug, CD
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform

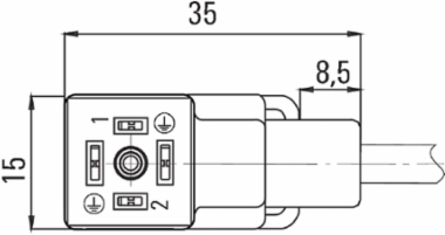

Dimensions And Weights
- Net weight
- 539 g
General Technical Data
- Version
- 90° plug - valve plug

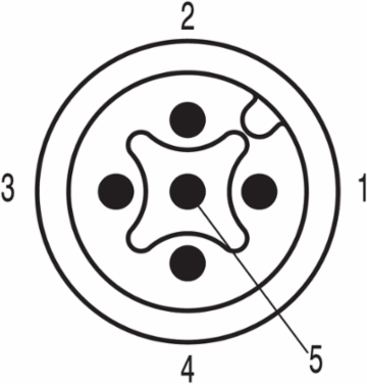

- Coding
- DIN design C (8 mm), M12 = A
- Contact surface
- tinned
- Rated voltage
- 24 V
- Temperature range of housing
- -25…+80 °C

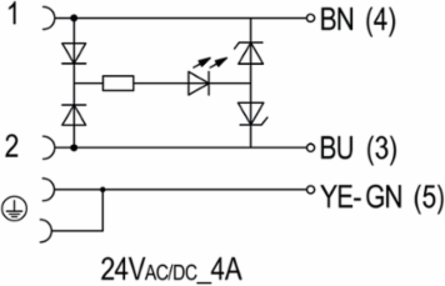

- All valve plugs are fitted with protective circuits
- Zener diode
Connection threadMiscellaneous
Protection degreeIP67, when screwed in
LEDYes
Rated current4 A
Tightening torqueM2.5 mounting screw: 0.3 Nm, M12: 0.8 - 1.2 Nm
Technical Specifications For Cable
- Number of poles
- 3
- Outside diameter
- 4.6 ± 0.2 mm
- Shielded
- No
- Colour coding
- brown, blue, Green/yellow
- Sheathing colour
- black
- Temperature range, moving
- -25...80 °C
- Suitable for cable carriers
- Yes
- Bending radius, min., stationary
- 5 x cable diameter
- Acceleration
- 5 m/s²
- Bending cycles
- 2 Mio
Core cross-section0.5 mm²
Cable length10 m
InsulationPP
Sheath materialPUR
HalogenNo
Temperature range, stationary-50...80 °C
Torsion resistance0 °/m
Bending radius, min., moving10 x cable diameter
Speed200 m/min
Resistant to welding beadsNo
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-12
- eClass 10.0
- 27-06-03-12
ETIM 7.0EC001855
eClass 9.127-06-03-11
UNSPSC30-21-18-10
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 80 °C
- Operating temperature, max.
- 80 °C
Operating temperature range, min.-25 °C
Operating temperature, min.-25 °C
