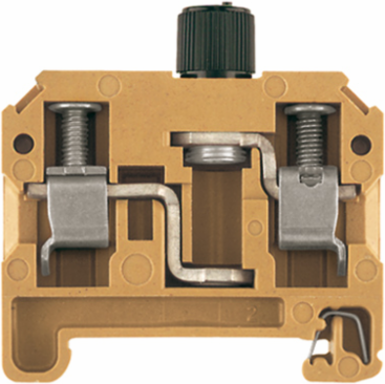

Weidmuller 0667420000 SAKS 3/35 (RED CAP)
- MPN: 0667420000
- PPN: WDM-0667420000
CAD
$91.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAK Series, Fuse terminal, Rated cross-section: 10 mm², Screw connection, Direct mounting
Documentation & Downloads
Specifications
Approvals
| Approvals | CSA, DNV GL, EAC, MARITREG, UR |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 13 mm |
|---|---|
| Height | 54 mm |
| Depth | 53.5 mm |
| Net weight | 43.4 g |
| Width (inches) | 0.512 inch |
|---|---|
| Height (inches) | 2.126 inch |
| Depth (inches) | 2.106 inch |
Fuse Terminals
| Cartridge fuse | G-Si. 1 x 1/4 |
|---|
Dimensions
| TS 35 offset | 27 mm |
|---|
Csa Rating Data
| Certificate No. (CSA) | 12400-198 |
|---|---|
| Voltage size C (CSA) | 600 V |
| Wire cross section min. (CSA) | 22 AWG |
| Current size C (CSA) | 10 A |
|---|---|
| Wire cross section max. (CSA) | 10 AWG |
Additional Technical Data
| Installation advice | Direct mounting |
|---|
| Type of mounting | Snap-on |
|---|
Material Data
| Material | KrG |
|---|---|
| UL 94 flammability rating | V-0, 5VA |
| Colour | medium yellow |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000899 |
|---|---|
| eClass 9.0 | 27-14-11-16 |
| eClass 10.0 | 27-14-11-16 |
| ETIM 7.0 | EC000899 |
|---|---|
| eClass 9.1 | 27-14-11-16 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Specifications
| Version | Screw connection, Fuse cartridge, One end without connector |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
| Number of potentials | 1 |
|---|---|
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Rating Data
| Rated cross-section | 10 mm² |
|---|---|
| Rated current | 10 A |
| Power loss in accordance with IEC 60947-7-x | 1.82 W |
| Rated voltage | 500 V |
|---|---|
| Volume resistance according to IEC 60947-7-x | 0.56 mΩ |
Conductors For Clamping (Rated Connection)
| Number of connections | 2 |
|---|
| Type of connection | Screw connection |
|---|
Ul Rating Data
| Certificate No. (UR) | E60693 |
|---|---|
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Voltage size C (UR) | 600 V |
| Conductor size Factory wiring max. (UR) | 8 AWG |
|---|---|
| Conductor size Field wiring max. (UR) | 8 AWG |
| Current size C (UR) | 8 A |
