Weidmuller 0502100000 SAKS 5/35 DB
- MPN: 0502100000
- PPN: WDM-0502100000
CAD
$145.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

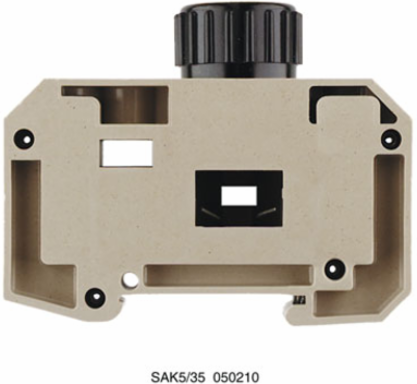

SAK Series, Fuse terminal, Rated cross-section: 16 mm², Screw connection, dark beige, Direct mounting
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CSA, EAC, GERMLLOYD, LLOYDSREG, MARITREG, UR |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Display Element
| Type of voltage for indicator | AC |
|---|
Dimensions And Weights
| Width | 28 mm |
|---|---|
| Height | 80 mm |
| Depth | 65 mm |
| Depth including DIN rail | 66 mm |
| Width (inches) | 1.102 inch |
|---|---|
| Height (inches) | 3.15 inch |
| Depth (inches) | 2.559 inch |
| Net weight | 105.2 g |
Fuse Terminals
| Cartridge fuse | E18 |
|---|---|
| Fuse holder (cartridge holder) | for screw fixing |
| Display | Without LED |
|---|---|
| Type of voltage for indicator | AC |
Csa Rating Data
| Certificate No. (CSA) | 12400-159-154 |
|---|---|
| Voltage size C (CSA) | 600 V |
| Wire cross section min. (CSA) | 14 AWG |
| Current size C (CSA) | 63 A |
|---|---|
| Wire cross section max. (CSA) | 6 AWG |
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Open sides | closed |
| Installation advice | Direct mounting |
|---|---|
| Type of mounting | Snap-on |
Material Data
| Material | KrG |
|---|---|
| UL 94 flammability rating | V-0, 5VA |
| Colour | dark beige |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000899 |
|---|---|
| eClass 9.0 | 27-14-11-16 |
| eClass 10.0 | 27-14-11-16 |
| ETIM 7.0 | EC000899 |
|---|---|
| eClass 9.1 | 27-14-11-16 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Screw connection, Fuse cartridge, for screwable cross-connection, One end without connector |
|---|---|
| Number of potentials | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | No |
| End cover plate required | No |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Conductors For Clamping (Additional Connection)
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 16 mm² |
|---|
Rating Data
| Rated cross-section | 16 mm² |
|---|---|
| Rated voltage to adjoining terminal | 400 V |
| Current at maximum wires | 63 A |
| Volume resistance according to IEC 60947-7-x | 0.42 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 400 V |
|---|---|
| Rated current | 63 A |
| Standards | IEC 60947-7-3 |
| Power loss in accordance with IEC 60947-7-x | 2.43 W |
| Pollution severity | 3 |
Conductors For Clamping (Rated Connection)
| Blade size | 1.0 x 5.5 mm |
|---|---|
| Clamping range, min. | 1.5 mm² |
| Connection cross-section, finely stranded, max. | 16 mm² |
| Connection cross-section, stranded, max. | 16 mm² |
| Connection direction | on side |
| Number of connections | 2 |
| Tightening torque, max. | 2.4 Nm |
| Type of connection | Screw connection |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 16 mm² |
| Wire connection cross-section, finely stranded, min. | 1.5 mm² |
| Wire connection cross-section, solid core, min. | 1.5 mm² |
| Clamping range, max. | 16 mm² |
|---|---|
| Clamping screw | M 4 |
| Connection cross-section, finely stranded, min. | 1.5 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Gauge to IEC 60947-1 | B7 |
| Stripping length | 13 mm |
| Tightening torque, min. | 1.2 Nm |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1.5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
Ul Rating Data
| Certificate No. (UR) | E60693 |
|---|---|
| Conductor size Factory wiring min. (UR) | 14 AWG |
| Conductor size Field wiring min. (UR) | 14 AWG |
| Voltage size C (UR) | 600 V |
| Conductor size Factory wiring max. (UR) | 6 AWG |
|---|---|
| Conductor size Field wiring max. (UR) | 6 AWG |
| Current size C (UR) | 40 A |
