Weidmuller 1942860000 SC 3.81/04/180G 3.2SN OR BX

MPN: 1942860000
PPN: WDM-1942860000

$1.20

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PCB plug-in connector, male header, closed side, THT solder connection, 3.81 mm, Number of poles: 4, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (cURus)	cURus
Rated voltage (Use group B / UL 1059)	300 V
Rated current (Use group B / UL 1059)	10 A
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (cURus)	E60693
Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group D / UL 1059)	10 A

Approvals

Approvals	cURus, EAC
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	16.64 mm
Height	12.4 mm
Height of lowest version	9.2 mm
Depth (inches)	0.28 inch

Width (inches)	0.655 inch
Height (inches)	0.488 inch
Depth	7.1 mm
Net weight	1.14 g

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984
Rated current, max. number of poles (Tu=20°C)	17.1 A
Rated current, max. number of poles (Tu=40°C)	17.1 A
Rated voltage for surge voltage class / pollution degree III/2	160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	2.5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	2.5 kV

Rated current, min. number of poles (Tu=20°C)	17.5 A
Rated current, min. number of poles (Tu=40°C)	17.5 A
Rated voltage for surge voltage class / pollution degree II/2	320 V
Rated voltage for surge voltage class / pollution degree III/3	160 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	2.5 kV
Short-time withstand current resistance	3 x 1s with 76 A

Material Data

Insulating material	PA GF
Colour chart (similar)	RAL 2000
Comparative Tracking Index (CTI)	≥ 550
UL 94 flammability rating	V-0
Contact material	Copper alloy
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	120 °C
Temperature range, installation, max.	120 °C

Colour	orange
Insulating material group	II
Insulation strength	≥ 108 Ω
GWFI	960 °C
Contact surface	tinned
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Classifications

ETIM 6.0	EC002637
eClass 9.0	27-44-04-02
eClass 10.0	27-44-04-02

ETIM 7.0	EC002637
eClass 9.1	27-44-04-02
UNSPSC	30-21-18-11

Packing

Packaging	Box
VPE width	65 mm

VPE length	35 mm
VPE height	75 mm

System Specifications

Product family	OMNIMATE Signal - series BC/SC 3.81
Mounting onto the PCB	THT solder connection
Pitch in inches (P)	0.15 inch
Number of poles	4
Solder pin length (l)	3.2 mm
Tolerance of solder pin position	± 0.1 mm
Solder pin dimensions = d tolerance	0 / -0,03 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
L1 in inches	0.45 inch
Pin series quantity	1
Touch-safe protection acc. to DIN VDE 0470	IP 20
Can be coded	Yes
Plugging force/pole, max.	7 N

Type of connection	Board connection
Pitch in mm (P)	3.81 mm
Outgoing elbow	180°
Number of solder pins per pole	1
Solder pin length tolerance	0 / -0,02 mm
Solder pin dimensions	d = 1.0 mm, Octagonal
Solder eyelet hole diameter (D)	1.2 mm
L1 in mm	11.43 mm
Number of rows	1
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Volume resistance	6.00 mΩ
Plugging cycles	25
Pulling force/pole, max.	5 N

Notes

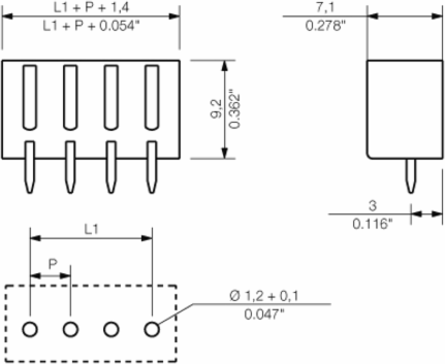

Notes	Additional colours on request Rated current related to rated cross-section & min. No. of poles. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. P on drawing = pitch

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
