Weidmuller 1863640000 SC-SMT 3.81/08/180LF 3.2SN BK RL
- MPN: 1863640000
- PPN: WDM-1863640000
CAD
$3.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

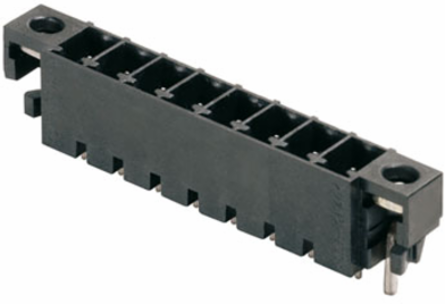

PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.81 mm, Number of poles: 8, 180°, Solder pin length (l): 3.2 mm, tinned, black, Tape
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 11 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)11 A
Approvals
- Approvals
- CSA, cURus, EAC
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 40.77 mm
- Height
- 12.4 mm
- Height of lowest version
- 9.2 mm
- Depth (inches)
- 0.28 inch
Width (inches)1.605 inch
Height (inches)0.488 inch
Depth7.1 mm
Net weight4.137 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 13.9 A
- Rated current, max. number of poles (Tu=40°C)
- 12.4 A
- Rated voltage for surge voltage class / pollution degree III/2
- 160 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 2.5 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 2.5 kV
Rated current, min. number of poles (Tu=20°C)17.5 A
Rated current, min. number of poles (Tu=40°C)17 A
Rated voltage for surge voltage class / pollution degree II/2320 V
Rated voltage for surge voltage class / pollution degree III/3160 V
Rated impulse voltage for surge voltage class/ pollution degree III/22.5 kV
Short-time withstand current resistance3 x 1s with 76 A
Material Data
- Insulating material
- LCP GF
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 175
- Moisture Level (MSL)
- 1
- GWIT
- 930 °C
- Contact material
- Copper alloy
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
- Temperature range, installation, max.
- 120 °C
Colourblack
Insulating material groupIIIa
Insulation strength≥ 108 Ω
UL 94 flammability ratingV-0
GWFI960 °C
Contact surfacetinned
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC002637
- eClass 9.0
- 27-44-04-02
- eClass 10.0
- 27-44-04-02
ETIM 7.0EC002637
eClass 9.127-44-04-02
UNSPSC30-21-18-10

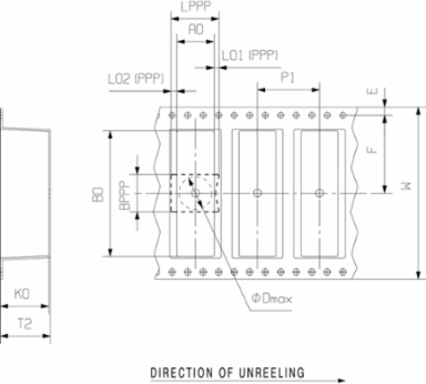

Packing
- Packaging

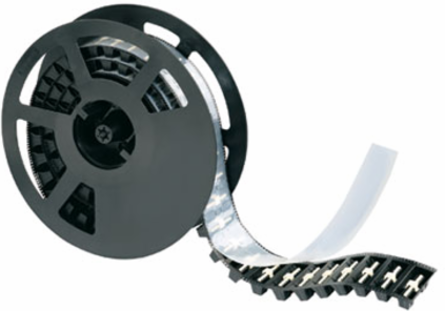

- Tape
- VPE width
- 330 mm
- Tape depth (T2)
- 14.4 mm
- Tape pocket depth (K0)
- 13.9 mm
- Tape pocket width (B0)
- 42.35 mm
- Tape hole separation (E)
- 1.75 mm

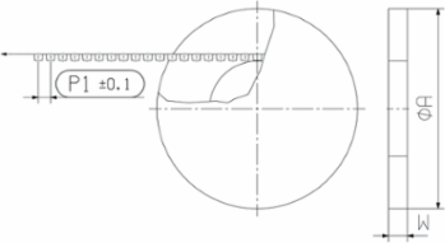

- Tape reel diameter ∅ (A)
- 330 mm
- Width Pick & Place Pad (W
- 6.7 mm
- Diameter of the withdrawal surface (ø D
- 6 mm
- Protrusion 2 Pick & Place Pad (P
- 6.25 mm
VPE length60 mm
VPE height330 mm
Tape width (W)56 mm
Tape pocket height (A0)7.6 mm
Tape pocket separation (P1)16 mm
Tape pocket separation (F)26.2 mm
Surface resistanceRs = 109 - 1012 Ω
Length Pick & Place Pad (L12.5 mm
Protrusion 1 Pick & Place Pad (L6.25 mm

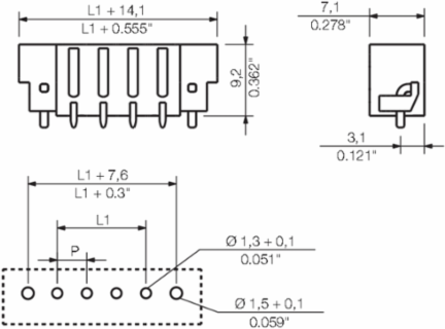

System Specifications
- Product family
- OMNIMATE Signal - series BC/SC 3.81
- Mounting onto the PCB
- THT/THR solder connection
- Pitch in inches (P)
- 0.15 inch
- Number of poles
- 8
- Solder pin length (l)
- 3.2 mm
- Tolerance of solder pin position
- ± 0.1 mm
- Solder pin dimensions = d tolerance
- 0 / -0,04 mm
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- Template aperture diameter
- 1.9 mm
- L1 in inches
- 1.05 inch
- Pin series quantity
- 1
- Touch-safe protection acc. to DIN VDE 0470
- IP 20
- Can be coded
- Yes
Type of connectionBoard connection
Pitch in mm (P)3.81 mm
Outgoing elbow180°
Number of solder pins per pole1
Solder pin length tolerance0 / -0,02 mm
Solder pin dimensionsd = 1.0 mm, Octagonal
Solder eyelet hole diameter (D)1.3 mm
Outside diameter of solder pad2.1 mm
L1 in mm26.67 mm
Number of rows1
Touch-safe protection acc. to DIN VDE 57 106Safe from finger touch
Volume resistance6.00 mΩ
Plugging cycles25
Notes
- Notes
- Rated current related to rated cross-section & min. No. of poles. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. P on drawing = pitch
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1121690
Rated current (Use group B / CSA)11 A
