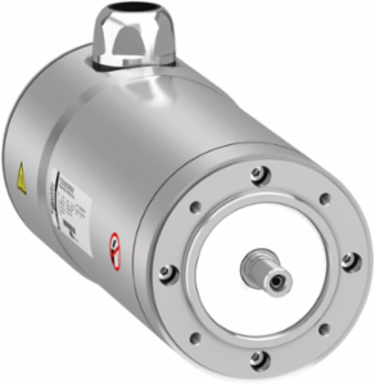

Schneider Electric FCE200520B200 Servo Motor SHS 071 1.4 Nm, 8000 RPM, IP69K, 6.4 kg
- MPN: FCE200520B200
- PPN: SCH-FCE200520B200
CAD
$2772.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Experience precision and reliability with this high-performance servo motor designed by Schneider Electric. The SHS 071 model delivers a nominal output power of 880 W and a continuous stall torque of 2 N.m, making it an ideal choice for demanding automation and motion control applications. With a maximum speed of 8000 RPM and a robust IP69K protection rating, this motor is built to withstand harsh environments while ensuring optimal performance. Its three-phase design and advanced encoder technology provide exceptional feedback resolution, enabling smooth and accurate operation. Weighing in at 6.4 kg, this servo motor is not only powerful but also compact, making it easy to integrate into various systems. Whether you're working on industrial machinery or intricate automation setups, this servo motor is engineered to meet your performance needs with efficiency and durability.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany, United States
Physical Attributes
- Key Width
- 4 mm
- Shaft Length
- 23 mm
Motor Flange Size71 mm
Complementary Attributes
- Maximum Current Irms
- 11.8 A LXM62, 11.8 A LXM52
- Line Rated Current
- 2.2 A
- Maximum Axial Force Fa
- 80 N
- Maximum Operational Altitude
- 1000.0 m
- Maximum Radial Force Fr
- 390 N 6000 rpm
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed8000 rpm
Maximum Permanent Current2.2 A
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM
- Continuous Stall Torque
- 2 N.m LXM62, 2 N.m LXM52
- Nominal Speed
- 6000 rpm6000 rpm LXM62, 6000 rpm LXM52
- Peak Stall Torque
- 7.6 N.m LXM62 2200 mA, 400 V, 3 phase, 7.6 N.m LXM52 2200 mA, 400 V, 3 phase
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Scope Perimeter
- At least in Europe
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 71 mm
- Continuous Stall Current
- 2.9 A
- Derating Temperature Scale
- 80.0 °C
- Electrical Connection
- cable with stripped end
- Holding Brake
- without
- Inertia
- 0.0 kg.cm² of brake0.41 kg.cm² of motor
- Minimum Operational Altitude
- 0.0 m
- Mounting Holes Diameter
- 6 mm
- Network Number Of Phases
- 3
- Number Of Motor Stacks
- 2
- Phase
- three phase
- Product Or Component Type
- servo motor
- Rotor Inertia
- 0.41 kg.cm²
- Shaft End
- smooth shaft
- Speed Feedback Resolution
- 128 periods
- Stator Resistance
- 4.2 Ohm
- Switching Frequency
- 8 kHz
- Torque Constant
- 0.69 N.m/A
- Length Total
- 216.7 mm
- Maximum [In] Rated Current
- 2.2 A
- Package Weight(Lbs)
- 4.0 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Nominal Torque1.4 N.m LXM62 400 V three phase, 1.4 N.m LXM52 400 V three phase
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter60 mm
Continuous Power880 W
Derating Altitude Scale100.0 m
Device Short NameSHS
Encoder Typeabsolute multiturn SinCos Hiperface
Holding Torque2 N.m
Maximum Operational Altitude1000.0 m
Motor Figures400.0 V
Mounting Supportflange
Number Of Motor Poles3
Number Of Mounting Holes4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityYes
Shaft Diameter11 mm
Sizing ReferenceSC005H2201
Stator Inductance19 mH
Sustainable PackagingNo
Temperature Copper Hot130 °C
Type Of Coolingnatural convection
[Us] Rated Supply Voltage400 V
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501528040
Environment Attributes Main
- Ip Degree Of Protection
- IP69K motor: conforming to IEC 60034-5, IP67 motor: conforming to IEC 60034-5
- Take Back
- No
- Packaging Made With Recycled Cardboard
- Yes
Product CompatibilityLXM62 400 V, three phase, LXM52 400 V, three phase
Recycled Metal Content At Cr Level0 %
Packaging Without Single Use PlasticNo
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 880 W LXM62, 880 W LXM52
Output Current 3s Peak11.8 A
