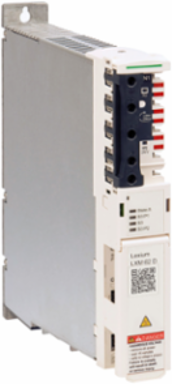

Schneider Electric LXM62DD15C21000 Lexium 62 Single Drive 15A, 2.4kW, IP20 Rated, 3kg

  • MPN: LXM62DD15C21000
  • PPN: SCH-LXM62DD15C21000
  • UNSPSC: 39121021

CAD

$4026.31

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This product is part of the Lexium 62 & Motors range, an offer of servo drives. The single drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 24VDC, a continuous output current of 5A at 4kHz and a continuous power of 2.4kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets CSA C22.2 No 14, EN 61800-5-1, EN/ISO 13849-1, EN/ISO 13849-2, UL 508C, EN 62061 and IEC 61508 standards. This product is compatible with servo motor SH3 (70mm, 2 motor stacks) and servo motor SH3 (70mm, 3 motor stacks). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions.

Features

  • Universal, compact servo drives for multiaxis solutions
  • Modular design
  • Safety input inverter enable
  • Safe drives with advanced safety functionality
  • Easy installation, commissioning and maintenance

Documentation & Downloads

Specifications

Key Specifications

Country of OriginBrazil, France
Depth270 mm
Weight3856 g

Communications & Management Attributes

Communication InterfaceSERCOS III, Integrated

Complementary Attributes

Us Rated Supply Voltage400 V - 10...10 %)three phase, - 10...10 %)three phase, - 10...10 %)single phase, 230 V
Maximum Ambient Air Temperature For Operation55.0 °C
Maximum Operational Altitude3000.0 m
Maximum In Rated Current5.0 A
Line Rated Current5.0 A
Maximum Current Irms15.0 A
Minimum Ambient Air Temperature For Operation5.0 °C

Important Information Attributes

Persona Type IdsEU, OM
Electrical Connectionterminal 0.2...15 mm², 24 AWG...16 AWG CN4), terminal 0.5...16 mm², 20 AWG...6 AWG CN5), terminal 0.75...16 mm², 18 AWG...6 AWG CN6), terminal 0.2...6 mm², 24 AWG...10 AWG CN7)
Supply Voltage208-360 V three phase, 380-480 V three phase
Carbon Footprint Of The Distribution Phase A40.2794334923928812, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A51.6133145122397525, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B64 042 kg CO2 eq., 4041.938244045323
Local Publishable Date2026-01-12
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1406012EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Component NameLXM62
Derating Altitude Scale80.0 m
Derating Temperature Scale70.0 °C
Device Short NameLXM 62
Nominal Power2.4 kW
Phasethree phase
Product Or Component Typesingle drive
ReturnabilityYes
Shock Resistance100 m/s² IEC 60721-3-3
Supply Frequency50/60 Hz - 5...5 %
Switching Frequency8 kHz
Total Lifecycle Carbon Footprint4 619 kg CO2 eq.
Database Version2024-01
Height Nominal310 mm
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %57
Persona Type NamesEnd User, Original Equipment Manufacturer
Nominal Voltage230 V three phase, 400 V three phase
Certificate AgencyCSA, TÜV, CE, EAC, UL
Carbon Footprint Of The End Of Life Phase C1 To C46 kg CO2 eq., 6.357762297901698
Carbon Footprint Of The Manufacturing Phase A1 To A3568 kg CO2 eq., 568.4429825380537
Local Data StatusPublishable
Return IndicatorY
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Continuous Power2.4 kW
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Environmental Characteristic3K3 conforming to IEC 60721-3-3
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductPacDrive 3
Safety FunctionSTO (safe torque off)
Software Versionv6.2.5-6
Sustainable PackagingNo
Tightening TorqueCN1 2.5-2.5 N.m
Vibration Resistance10 m/s² conforming to IEC 60721-3-3
Data Sourceextrapolated product
Width Nominal44.5 mm
Customs Code8504404000
Functional Unit DescriptionTo monitor the position of a servo motor with 80% use rate at 119 W in industrial environment during 10 years.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh8339.52

Environment Attributes Main

Product Compatibilityservo motor SH3 100 mm, 2 optimized in terms of torque and speedservo motor SH3 100 mm, 3 optimized in terms of high torque, servo motor MH3 70 mm, 3 optimized in terms of torque and speed, servo motor MH3 100 mm, 1 optimized in terms of torque and speed, servo motor SHSservo motor SH3 70 mm, 2 optimized in terms of torque and speed, servo motor SH3 70 mm, 3 optimized in terms of torque and speedservo motor SH3 100 mm, 1 optimized in terms of torque and speed, servo motor SH3 100 mm, 2 optimized in terms of high torque, servo motor SH3 140 mm, 1 optimized in terms of high torque, servo motor MH3 70 mm, 2 optimized in terms of torque and speed
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation5-55 °C
Environmental DisclosureENVPEP1406012EN
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Without Single Use PlasticNo
Relative Humidity5-85 %
Pep Verification Date2025-08-28
Psr VersionPSR-0005-ed3-EN-2023 06 06
Take BackNo
China Rohs RegulationX
Carbon Footprint4618.631736885911
Circularity ProfileENVEOLI1406012EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1406012EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Phasethree phase
Range Of ProductPacDrive 3
Product Or Component Typesingle drive

ETIM

ETIM 8EC001857
ETIM 10EC001857
ETIM 9EC001857

Output Attributes

Output Current 3s Peak15 A 4 kHz, 15.0 A
Discrete Output Voltage24 V DC
Continuous Output Current5 A 4 kHz
Number Of Outputs2 digital

Input Attributes

Number Of Inputs2 digital, 2 touch probe
Discrete Input Voltage24 V DC for - 20...25 %
