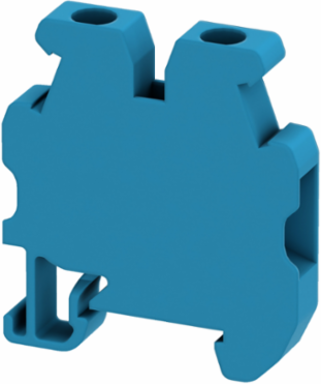

Mini Screw Terminal Block 15MM DIN Rail 2 Points 4MM2
Schneider Electric

Schneider Electric NSYTRV42MBL Mini Screw Terminal Block 15MM DIN Rail 2 Points 4MM2

  • MPN: NSYTRV42MBL
  • PPN: SCH-NSYTRV42MBL
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $3.75

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This mini screw terminal block from Schneider Electric is designed for efficiency and reliability in automation and control applications. Ideal for use on DIN rails, it features two points that accommodate a 4mm2 conductor size, ensuring secure connections in compact installations. With its robust construction and thoughtful design, this terminal block serves as an essential accessory that enhances the performance and safety of your electrical system, making it a valuable addition to your terminal block accessories.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Turkey

    Physical Attributes

    Color
    Blue
    Wire Stripping Length8 mm

    Complementary Attributes

    Line Rated Current
    32-32 A EN/IEC 60947-7-130-30 A CSA, 30-30 A UL

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Cable Cross Section
    0.2-6 mm², flexible without cable end, 0.2-4 mm², solid with cable end0.2-4 mm², flexible with cable end0.2-6 mm², solid without cable end
    Dielectric Loss
    0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
    Resistivity
    10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
    Tool Type
    connection screwdriver, disconnection screwdriver
    [Ue] Rated Operational Voltage
    600 V CSA500 V EN/IEC 60947-7-1, 600 V UL
    Carbon Footprint Of The Distribution Phase [A4]
    0.000823841, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.000514889, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    6 kg CO2 eq., 5.932823377
    Local Publishable Date
    2026-06-27
    Stocking Flag
    Y
    Weee Applicability
    Component
    Weee Exclusion Rationale
    Component not in scope – non independent function
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    2518
    China Rohs In Scope
    No
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Connection Position
    sideways
    Dielectric Constant
    3.7 at 1 MHz
    Energy Efficiency Optimized
    False
    Mounting Mode
    clip-on
    Number Of Terminals
    2
    Product Name
    Linergy TR
    Quantity Per Set
    set of 50
    Range Of Product
    Linergy
    Software Version
    v5.9.4
    Terminal Block Level
    1
    Tightening Torque
    0.6-0.8 N.m
    Pep Code
    ENVPEP2309018EN
    Pep Verification Date
    2023-12-03
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal
    34 mm
    Width Nominal
    6.2 mm
    Halogen-free Status
    Halogen free plastic parts product
    Package Weight(Lbs)
    6 g
    Take-back
    No
    Customs Code
    8536904000
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
    Materialpolyamide 6/6: insulating casecopper alloy: connector and screw, copper alloy: commoning linkchromium-nickel steel: spring
    Surface Resistance1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
    Certificate AgencyUL, CSA, VDE
    Connections - Terminals1 x screw terminal upstream M3), 1 x screw terminal downstream M3)
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.017378218
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0 kg CO2 eq., 0.03816967
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Compatibility Codeterminal block
    Device Short NameTRV
    Dielectric Strength1000 V IEC 60243-1
    Flame RetardanceV0 0.8 mm UL 94
    Nominal Cross Section4 mm²
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typemini terminal block
    RangeLinergy
    ReturnabilityNo
    Sustainable PackagingYes
    Terminal Block Typepassthrough
    Total Lifecycle Carbon Footprint6 kg CO2 eq.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionConnect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 21 A, a rated cross-section 2.5 mm², a rated voltage 690 V.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; GE
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %46
    Length Total30 mm
    Accessory / Separate Part Categoryconnection accessory
    Nbr. Of Units In Pkg.1
    Silicone-freeYes
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Silicon Free
    Yes
    Environmental Disclosure
    ENVPEP2309018EN
    Halogen Content Performance
    Halogen free plastic parts product
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2023-12-03
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
    Halogene PerformanceHalogen free plastic parts product
    Mercury FreeYes
    Carbon Footprint5.989709996
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Product CompatibilitySpacial enclosures
    Pep CodeENVPEP2309018EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review

    General Attributes

    Product Or Component Type
    mini terminal block
    Range Of ProductLinergy

    ETIM

    ETIM 8
    EC000897
    ETIM 9EC000897

    Input Attributes

    Number Of Measurement Input
    1
