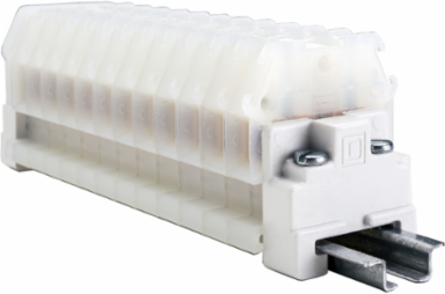

Square D 9080GR612 Linergy Terminal Block Assembly, 12 Blocks, 60A, 600V, Natural Color
- MPN: 9080GR612
- UPC: 785901958604
- PPN: SCH-9080GR612
CAD
$72.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block assembly has twelve 9080GR6 terminal blocks, a 9080GM6B end barrier and two 9080GH10 end clamps all mount on 9080GH mounting track. The box lug connectors of the terminal blocks used for this assembly are approved for use with solid or stranded copper wires from 22 through 8 AWG. The nylon terminal blocks and end barrier are molded in the natural color of nylon (off white). The terminal blocks are UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth6 in
Physical Attributes
- Color
- natural
Complementary Attributes
- Line Rated Current
- 60-60 A UL, 60-60 A CSA
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Kit Composition
- 1 end barrier2 end clamp(s)12 terminal blocks, 1 mounting track
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protection Type
- fingersafe DIN 57470
- Returnability
- No
- Height Nominal
- 1.82 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCE, CSA file 62144 class 6228 01, UL recognized E60616 CCN XCFR2
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1918
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg Gauge22 AWG...8 AWG copper
Mounting Support9080GH track
Product Or Component Typeterminal block
Range Of Product9080G
Sustainable PackagingNo
Width Nominal1.72 in
Connections - Terminalslug copper 18-20 lbf.in : 22 AWG...8 AWG copper)
Package Weight(Lbs)544.311 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Ambient Air Temperature For Operation-40-257 °F, -40-257 °F
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- terminal block
Range Of Product9080G
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
